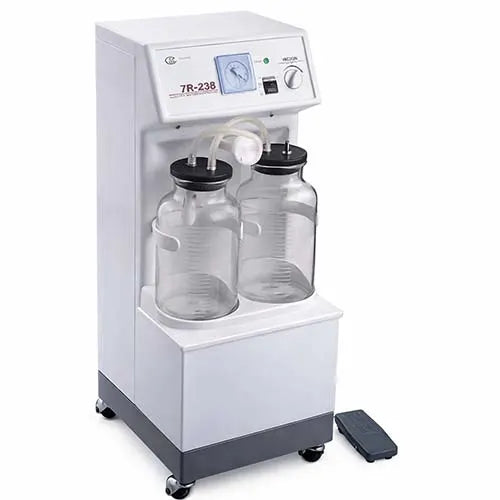

Yuwell Suction 1HP Machine 40LPM Double Bottle
The Yuwell Suction 1HP Machine 40LPM Double Bottle is a high-capacity medical suction apparatus designed for hospitals, operation theatres, emergency departments and clinical procedure areas. It uses an oil-free piston pump to provide strong suction performance while avoiding oil smoke and reducing routine maintenance requirements.
The machine offers a pumping rate of 40 L/min or more with a maximum negative pressure of ≥0.09 MPa. Its dual-bottle configuration includes two large collection jars, each with a capacity of approximately 2500 mL, making it suitable for procedures where higher fluid collection capacity is required.
The system is designed with convenient foot-switch operation, low-noise performance and anti-backflow protection. Therefore, it can support stable suction during routine surgical, emergency and clinical use while helping reduce the risk of collected fluid flowing backward when the machine stops.
Key Features
- 40 LPM Pumping Capacity: Provides a suction flow rate of at least 40 litres per minute for high-demand clinical applications.
- Oil-Free Piston Pump: Eliminates the need for routine oil filling and avoids oil smoke during operation.
- High Negative Pressure: Maximum negative pressure is specified at ≥0.09 MPa.
- Double Bottle Design: Includes two 2.5-litre collection jars for increased fluid storage capacity.
- Anti-Backflow Protection: Designed to help prevent fluid from flowing backward when the machine stops.
- Low-Noise Operation: Noise level is specified at ≤65 dB(A), supporting more comfortable use in clinical environments.
- Foot Switch Operation: Allows convenient hands-free suction control during procedures.
- Mobile Floor Model: Wheeled base supports easier repositioning within hospitals and procedure rooms.
- Large Reservoir Capacity: Two 2500 mL jars provide a combined collection capacity of approximately 5 litres.
Clinical Applications
| Application | Use |
|---|---|
| Operation Theatre | Supports removal of fluids and secretions during selected surgical procedures. |
| Emergency Department | Can be used for rapid suction support during emergency and critical-care procedures. |
| ICU / Critical Care | Suitable for selected suction requirements in high-dependency care areas. |
| Procedure Rooms | Useful for routine clinical suction during applicable procedures. |
| Hospital Wards | Can support supervised suction procedures where a high-capacity floor unit is required. |
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Yuwell Suction 1HP Machine 40LPM Double Bottle |
| Product Type | Medical Suction Apparatus |
| Pump Type | Oil-Free Piston Pump |
| Pumping Rate | ≥40 L/min |
| Maximum Negative Pressure | ≥0.09 MPa |
| Reservoir Capacity | 2500 mL × 2 |
| Total Collection Capacity | Approx. 5 Litres |
| Jar Type | Double Collection Jars |
| Noise Level | ≤65 dB(A) |
| Power Supply | AC 220V ±22V |
| Frequency | 50Hz ±1Hz |
| Backflow Protection | Yes |
| Oil Requirement | No Routine Oil Filling Required |
| Foot Switch | Provided |
| Approx. Product Dimensions | 50 × 40 × 40 cm |
| Approx. Weight | 17 kg |
| Primary Application | Clinical and Surgical Suction |
Benefits
- High 40 L/min pumping capacity supports demanding clinical suction applications.
- Dual 2.5-litre jars reduce the need for frequent collection-container changes.
- Oil-free pump design simplifies routine maintenance.
- Anti-backflow protection helps reduce reverse fluid movement when operation stops.
- Foot-switch control supports convenient hands-free operation.
- Low-noise design helps improve usability in hospital and procedure environments.
- Mobile floor-standing format makes the machine practical for larger clinical areas.
- Strong negative pressure supports reliable suction performance.
Suitable For
- Hospitals
- Operation theatres
- Emergency departments
- ICUs
- Critical care units
- Procedure rooms
- Clinics with high-capacity suction requirements
How to Use
- Place the suction machine on a stable and level clinical floor surface.
- Inspect the collection jars, tubing, lids and suction connections before use.
- Connect the suction tubing correctly according to the clinical setup.
- Switch on the machine and adjust the negative pressure according to the procedure requirement and medical protocol.
- Use the foot switch where hands-free operation is required.
- Monitor the collection jars continuously and avoid exceeding safe fill levels.
- Stop suction immediately if abnormal noise, backflow, leakage or malfunction is observed.
- After use, switch off the machine and disconnect the patient-side tubing safely.
- Clean and disinfect the collection jars and reusable components according to hospital infection-control procedures.
Why Choose This Yuwell Suction Machine?
The Yuwell Suction 1HP Machine 40LPM Double Bottle is designed for hospitals and clinical environments that require high-capacity suction with dependable fluid collection. Its oil-free piston pump delivers a pumping rate of at least 40 L/min while reducing the need for routine oil maintenance.
The two 2500 mL collection jars provide approximately 5 litres of total fluid capacity, while the anti-backflow design helps improve operational safety. Combined with low-noise performance, foot-switch control and a mobile floor-standing body, the unit is practical for operation theatres, emergency areas and other professional suction applications.
Why Choose Medansh?
Medansh offers medical suction machines, operation-theatre equipment, respiratory-care products and hospital devices for hospitals, clinics and institutional healthcare buyers. Buyers can explore suitable suction apparatus and clinical equipment on Medansh.in according to procedural requirements, facility setup and budget.
Important Note: This suction apparatus is intended for professional medical use. Negative pressure settings, suction technique, jar handling and infection-control procedures should be managed by trained healthcare personnel according to clinical protocol and the manufacturer's instructions. The supplied product image references a 1/2 HP motor while the product title states 1 HP; confirm the exact motor rating and final model configuration before purchase.
Frequently Asked Questions
What is the pumping capacity of this Yuwell suction machine?
The supplied specifications list a pumping rate of at least 40 L/min.
How many collection jars are provided?
The machine uses two collection jars.
What is the capacity of each jar?
Each jar has an approximate capacity of 2500 mL.
What is the total collection capacity?
The two jars provide a combined capacity of approximately 5 litres.
Is the pump oil-free?
Yes. It uses an oil-free piston pump and does not require routine oil filling.
What is the maximum negative pressure?
The supplied specification lists a maximum negative pressure of at least 0.09 MPa.
What is the noise level?
The machine is specified at ≤65 dB(A).
Does it have backflow protection?
Yes. The supplied product information states that fluid should not flow backward when the machine stops.
What are the approximate dimensions and weight?
The listed dimensions are approximately 50 × 40 × 40 cm with an approximate weight of 17 kg.
Where can this suction apparatus be used?
It is suitable for hospitals, operation theatres, emergency departments, ICUs and other professional clinical environments requiring high-capacity suction.
