ResPlus BIPAP With Humidifier and Mask
In stock
Share this product

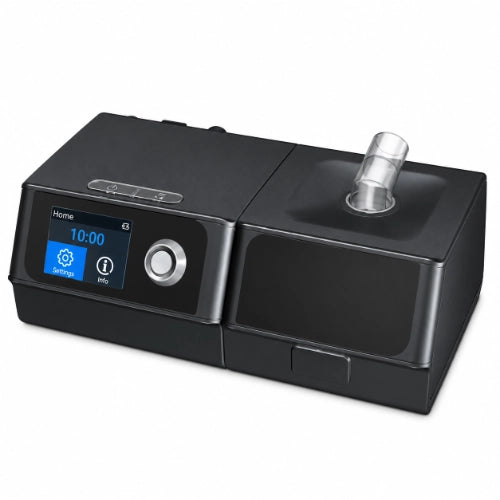

ResPlus BiPAP with Humidifier and Mask
The ResPlus BiPAP with Humidifier and Mask is designed to provide non-invasive positive airway pressure support for patients who require bilevel respiratory assistance under medical supervision. With multiple therapy modes, adjustable pressure settings, integrated humidification and automatic leak compensation, the device is suitable for home-care and clinical respiratory support environments.
The system supports S, T, ST, Auto BiPAP and CPAP modes, allowing therapy settings to be adapted according to the prescription and patient requirement. Its pressure range of 4–30 hPa and maximum pressure of 30 hPa provide flexibility for different respiratory therapy settings.
An integrated humidifier with adjustable humidification levels from 0 to 5 helps improve breathing comfort during therapy. In addition, features such as automatic leak compensation, ramp function and relatively low operating sound help support more convenient nightly use.
Key Features
- Multiple Therapy Modes: Supports S, T, ST, Auto BiPAP and CPAP modes for different prescribed respiratory support requirements.
- Wide Pressure Range: Adjustable pressure from 4 to 30 hPa with a maximum pressure of 30 hPa.
- Integrated Humidifier: Humidification adjustment from level 0 to 5 helps improve comfort during therapy.
- Auto Leak Compensation: Automatically compensates for suitable mask or circuit leakage to help maintain therapy pressure.
- Ramp Function: Ramp duration of up to 60 minutes allows therapy pressure to increase gradually according to the selected setting.
- Low Operating Sound: Specified sound level of approximately 30 dB supports quieter use during rest and sleep.
- Central Apnea Detection: Designed to support detection of central apnea events as part of the device monitoring system.
- SD Card Support: Supports SD card-based therapy data storage and review where applicable.
- Leak Alert: Provides alert support for significant leakage conditions.
- Auto-Adjusting Pressure: Auto mode can adjust pressure according to the device’s therapy algorithm and prescribed settings.
Therapy Modes
| Mode | Application |
|---|---|
| S Mode | Provides spontaneous bilevel support in response to the patient's breathing effort. |
| T Mode | Provides timed respiratory support according to configured therapy parameters. |
| ST Mode | Combines spontaneous breathing support with timed backup functionality. |
| Auto BiPAP | Automatically adjusts bilevel pressure within the prescribed settings according to the device algorithm. |
| CPAP | Provides continuous positive airway pressure according to the prescribed setting. |

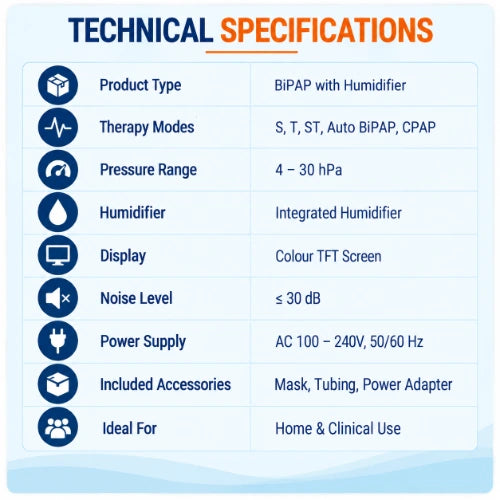

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | ResPlus BiPAP with Humidifier and Mask |
| Product Type | BiPAP / Non-Invasive Positive Airway Pressure Device |
| Therapy Modes | S, T, ST, Auto BiPAP, CPAP |
| Pressure Range | 4–30 hPa |
| Maximum Pressure | 30 hPa |
| Humidification Level | 0–5 |
| Auto Leak Compensation | Yes |
| Ramp Duration | Up to 60 Minutes |
| Sound Level | Approx. 30 dB |
| Central Apnea Detection | Supported |
| Leak Alert | Supported |
| SD Card | Supported |
| Auto-Adjusting Pressure | Supported in Applicable Auto Mode |
| Approx. Weight | 2.2 kg |
| Primary Use | Non-Invasive Respiratory Support Under Medical Prescription |
Benefits
- Multiple respiratory support modes provide flexibility for different prescribed therapy requirements.
- Wide pressure range supports personalised device configuration by qualified professionals.
- Integrated humidification can improve comfort during prolonged therapy sessions.
- Auto leak compensation helps maintain more stable pressure when suitable leakage occurs.
- Ramp function can make the beginning of a therapy session more comfortable.
- Central apnea detection and leak alerts provide additional monitoring support.
- SD card support can assist with therapy data review where enabled.
- Approximate 30 dB operating sound supports quieter nighttime use.
Common Clinical Applications
A BiPAP device may be prescribed by a qualified healthcare professional for selected patients who require non-invasive positive-pressure respiratory support. Depending on the clinical condition, prescribed settings and patient assessment, BiPAP therapy may be used in the management of:
- Obstructive sleep apnea in selected patients
- Central sleep apnea in appropriately assessed cases
- Chronic obstructive pulmonary disease requiring non-invasive ventilation support
- Selected neuromuscular disorders affecting ventilation
- Selected post-operative respiratory support requirements
- Other respiratory conditions where bilevel positive airway pressure has been prescribed
The exact indication, therapy mode and pressure settings must be determined by the treating physician or respiratory-care professional.
When to Get the BiPAP Machine Checked or Serviced
| Condition | Recommended Action |
|---|---|
| Decreased Air Pressure | If delivered airflow or pressure appears insufficient or inconsistent, stop relying on the device until it has been checked according to the manufacturer's guidance. |
| Unusual Noise | Unexpected rattling, buzzing or mechanical noise should be evaluated by qualified service personnel. |
| Overheating | Excessive heating may indicate blocked ventilation, filter problems or another technical fault requiring inspection. |
| Unusual Smell | A burning or electrical smell requires immediate discontinuation of use and technical assessment. |
| Warning Indicators | Persistent error codes or warning indicators should be addressed according to the user manual or by authorised service support. |
| Persistent Air Leakage | Check the mask, tubing and connections first; unresolved leakage should be assessed by a healthcare or service professional. |
| Routine Maintenance | Follow the manufacturer's prescribed maintenance schedule and facility or home-care protocol. |
Suitable For
- Home respiratory therapy under medical prescription
- Sleep therapy centres
- Respiratory clinics
- Hospitals
- Pulmonology departments
- Selected post-discharge respiratory care programmes
- Professional home-care setups
How to Use
- Place the BiPAP machine on a stable, level surface with adequate ventilation around the device.
- Fill and install the humidifier chamber according to the manufacturer’s instructions when humidification is prescribed.
- Connect the breathing tube securely between the machine and compatible mask.
- Position the mask correctly on the patient and check for excessive leakage.
- Use only the therapy mode, pressure settings and other parameters prescribed by the treating healthcare professional.
- Switch on the machine and allow the selected therapy programme to begin.
- Monitor comfort, mask fit and any warning indicators during use.
- Do not independently change prescribed pressure or respiratory settings unless instructed by an authorised healthcare professional.
- Clean the mask, humidifier chamber, tubing and filters according to the manufacturer’s care instructions.
Why Choose This ResPlus BiPAP?
The ResPlus BiPAP with Humidifier and Mask combines multiple therapy modes with adjustable bilevel pressure, integrated humidification and automatic leak compensation. This allows qualified healthcare professionals to configure the system according to the patient's prescribed respiratory support requirements.
Features such as a 4–30 hPa pressure range, 60-minute ramp, leak alert, central apnea detection and SD card support provide useful functionality for long-term respiratory therapy management. The integrated humidifier and low operating sound also support comfort during regular nighttime use.
Why Choose Medansh?
Medansh offers respiratory-care equipment, BiPAP and CPAP machines, oxygen therapy products and other home and clinical healthcare solutions for hospitals, respiratory-care professionals and home-care users. Buyers can explore suitable respiratory-support equipment on Medansh.in according to prescription, clinical requirement and care setup.
Important Note: BiPAP is a prescription respiratory-support therapy. The appropriate indication, therapy mode, inspiratory and expiratory pressures, backup rate and other settings must be determined by a qualified physician or respiratory-care professional. Do not start, stop or alter prescribed BiPAP therapy without medical guidance. Product functions and supplied configuration should be confirmed before purchase.
Frequently Asked Questions
What modes are available in the ResPlus BiPAP?
The supplied specifications list S, T, ST, Auto BiPAP and CPAP modes.
What is the pressure range?
The stated pressure range is 4–30 hPa, with a maximum pressure of 30 hPa.
Does the machine have a humidifier?
Yes. It includes adjustable humidification with settings from 0 to 5 according to the supplied information.
Does it support automatic leak compensation?
Yes. Auto leak compensation is listed as a supported feature.
What is the ramp duration?
The ramp function can be set for up to 60 minutes according to the supplied specification.
What is the operating sound level?
The listed sound level is approximately 30 dB.
Does it detect central apnea?
Central apnea detection is listed among the product features provided.
Does it support SD card storage?
Yes. SD card support is listed for therapy data handling.
What is the approximate weight?
The stated product weight is approximately 2.2 kg.
Can I set the pressure myself?
No. Pressure, mode and other respiratory therapy parameters should be configured according to a qualified healthcare professional’s prescription.
