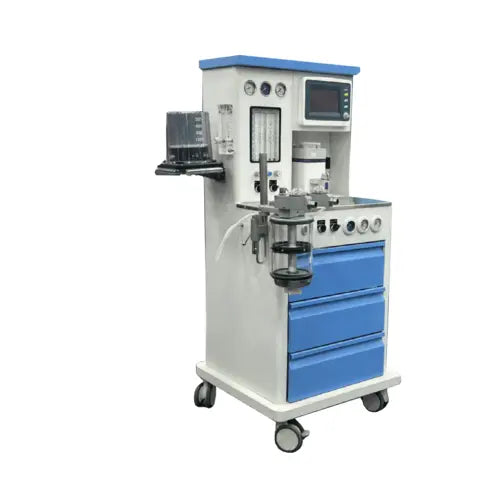

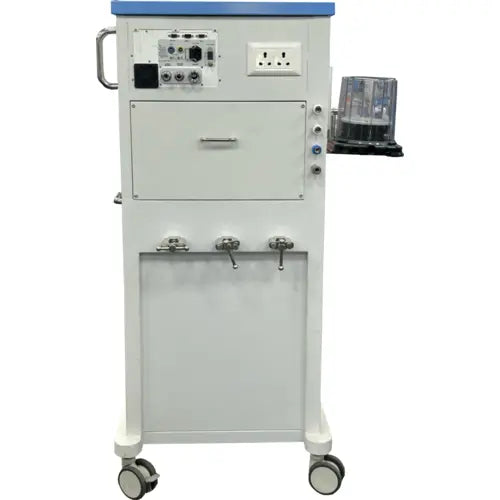

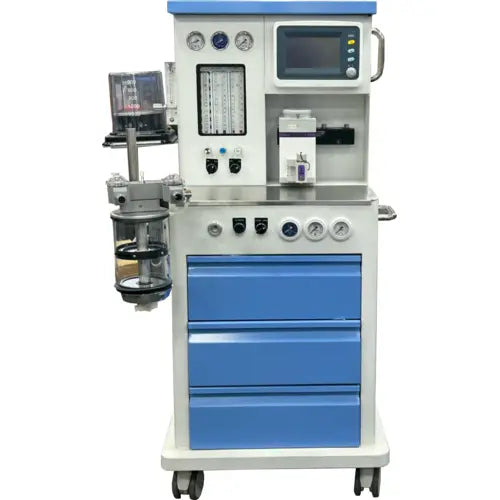

Prestige Premium Anesthesia Workstation

The Prestige Premium Anesthesia Workstation is an advanced and reliable system built to support precise anesthesia delivery for both pediatric and adult patients. With an intuitive 7” TFT screen, multiple ventilation modes, and robust safety features, this workstation ensures efficiency, accuracy, and safety in critical surgical environments.

Key Features

• Multi-Patient Use: Suitable for both pediatric and adult applications.

• Versatile Ventilation Modes: Supports VCV, PCV, SIMV, Manual, and Standby modes.

• Pneumatically Driven & Electronically Controlled: Delivers stable performance in every case.

• Flexible Breathing Systems: Compatible with semi-open, semi-closed, and closed circuit configurations.

• 7” Color TFT Display: Real-time monitoring of lung mechanics and waveform loops (P-V, V-F).

• Integrated Safety System: Hypoxy guard, O2-N2O linkage device, and high-capacity CO2 absorber ensure patient safety.

• Efficient Vapourizer Mount: Supports two interlocked vaporizers – Halothane, Isoflurane, or Sevoflurane.

• User-Friendly Circle Absorber Design: Large volume CO2 absorber with APL valve and anti-backflow structure.

• Wide Tidal Volume Range: Adjustable from 10ml to 1500ml for flexible patient care.

• Oxygen Flush Flow: Adjustable between 25L/min to 75L/min for rapid oxygen delivery.

Technical Specifications

• Tidal Volume: 10ml – 1500ml

• Ventilation Modes: VCV, PCV, SIMV, Manual, Standby

• Drive System: Pneumatically Driven, Electronically Controlled

• Breathing Systems: Semi-open, Semi-closed, Closed

• Display: 7” Color TFT Screen with Lung Mechanics

• Gas Supply: O2, N2O, Air

• Flow Meter: Five-tube Bobbin Type

  • O2: 0.1–10 L/min

  • N2O: 0.1–12 L/min

  • Air: 0.1–15 L/min

• Gas Pressure Range:

  • O2, N2O, Air: 0.25–0.65 Mpa

• Oxygen Flush: 25–75 L/min

• Battery Backup: 120 minutes

• Vapourizer Mount: Select-tec bar system for dual vaporizers

• Frame: Rust-proof epoxy-coated, with two large drawers

• Power Supply: 220V, 50/60Hz; Battery: 12V DC

• Dimensions: 150 x 67 x 60 cm

• Optional: Basal Flow feature

Monitoring Parameters

• Pressure Values: Ppeak, Pmean, Pplat, Pmin, PEEP

• Volume & Flow Values: MV, MV SPONT, Ftotal, Fspn

• Compliance & Resistance: Rinsp, Cdyn

• FiO2 Monitoring: Integrated

• Alarm System: Alerts for MV, pressure, Vte, FiO2, apnea, battery status, and circuit occlusion

Frequently Asked Questions (FAQs)

1. What patients can the Prestige Premium support?
It is suitable for both pediatric and adult patients, offering full respiratory control options.

2. What is the screen size and functionality?
The workstation features a 7” color TFT display with real-time waveforms and lung mechanics.

3. Are vaporizers included?
The unit supports two interlocked vaporizers (Halothane, Isoflurane, Sevoflurane) via a Select-tec bar mount.

4. How long does the battery backup last?
The built-in 12V battery provides up to 120 minutes of uninterrupted operation.

5. Does it support gas safety features?
Yes, it includes an O2-N2O linkage device, a hypoxy guard, and a reliable APL valve system.

Why Choose Prestige Premium Anesthesia Workstation?

• Suitable for both pediatric and adult cases

• Real-time monitoring with 7” TFT color screen

• Full spectrum of ventilation and gas safety features

• Dual vaporizer system for flexibility

• Integrated with large CO2 absorber and APL valve

• 120-minute battery for uninterrupted use

Buy Now

Upgrade your OT with the high-performing Prestige Premium Anesthesia Workstation. Ensure smooth, precise, and safe anesthesia management in every procedure.
Buy now from Medansh.in for the best pricing and reliable delivery.
