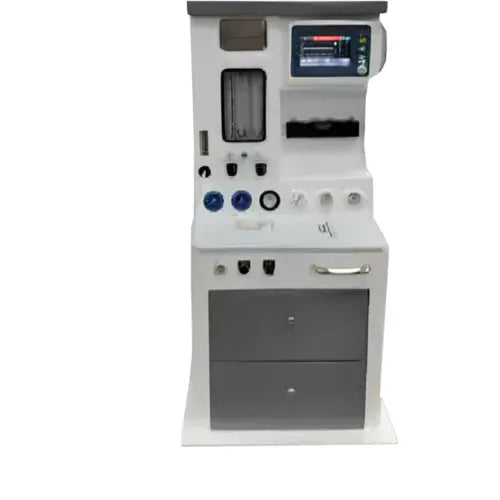

Prestage-1 Anesthesia Workstation

The Prestage-1  Anesthesia  Workstation is a robust, compact, and maneuverable system engineered for reliability in every clinical setting. Designed with advanced safety tests like pre-use circuit leak and compliance check, it ensures smooth and dependable anesthesia delivery across a wide range of patient applications. With flexible ventilation modes, a user-friendly interface, and a lightweight frame, Prestage-1 adapts effortlessly to dynamic operation theatre needs.

Key Features

• Compact & Mobile Design: Lightweight structure for easy mobility across departments.

• Advanced Ventilation Modes: VCV, PCV, SIMV-VC, SIMV-PC, PSV/SPONT, and Manual Standby modes for varied clinical needs.

• Tidal Volume Range: Adjustable from 20ml to 1500ml, catering to a wide patient range.

• Smart Display: 5-inch color TFT screen with real-time Paw-T, Flow-T waveforms and lung mechanics (loops: PV, VF).

• Integrated PEEP Valve: Ensures optimal end-expiratory pressure control.

• Gas Compatibility: Supports O₂, N₂O, and Air with a five-tube bobbin-type flow meter.

• Linkage & Safety Systems: Includes O₂ and N₂O linkage device with hypoxia guard and an auxiliary oxygen system.

• Battery Backup: Built-in battery supports up to 120 minutes of uninterrupted operation.

• Oxygen Flush Function: Delivers 25–75 L/min for emergency oxygenation.

• Alarm System: Real-time alerts for MV, pressure, Vte, apnea, circuit occlusion, power issues, and more.

Technical Specifications

• Ventilation Modes: VCV, PCV, SIMV-VC, SIMV-PC, PSV/SPONT, Manual Standby

• Tidal Volume: 20ml to 1500ml

• Display: 5” Color TFT with waveforms and loop displays

• Driving Mechanism: Pneumatically driven, electronically controlled

• System Types: Semi-open, semi-closed, closed

• Battery Backup: 12VDC, 120 minutes

• Gas Supply: O₂, N₂O, Air

• Flow Meter Ranges:

  • O₂: 0.1–1L/min & 1–10L/min

  • N₂O: 0.1–1L/min & 1–12L/min

  • Air: 0.1–15L/min

• Oxygen Flush Flow: 25L/min to 75L/min

• Pressure Range: 0.25MPa – 0.65MPa (O₂, N₂O, Air)

• Measurements: VTI, VTE, MV, MVSPONT, Rinsp, Cdyn, Fio₂

• Loops: Pressure-Volume, Volume-Flow

• Optional Modules: AGSS (Anesthetic Gas Scavenging), SPO₂, EtCO₂, Patient Monitoring (ECG, NIBP, Temp, IBP)

Frequently Asked Questions (FAQs)

1. Is the Prestage-1 suitable for all types of patients?
Yes, it supports a wide range of tidal volumes and ventilation modes, making it suitable for adult patients and various clinical scenarios.

2. What makes it easy to operate in different settings?
Its lightweight and compact design allows easy movement, and the 5" touchscreen simplifies parameter adjustment with real-time feedback.

3. How long is the battery backup?
The Prestage-1 provides a built-in battery backup of 120 minutes to ensure continuous operation during power disruptions.

4. What gas types are supported?
It supports oxygen (O₂), nitrous oxide (N₂O), and medical air, offering flexibility for diverse anesthesia needs.

5. Does it come with alarm and safety systems?
Yes, it includes advanced alarm systems for parameters like pressure, minute volume, apnea, and oxygen supply issues.

Why Choose the Prestage-1 Anaesthesia Workstation?

• Reliable and consistent performance

• Portable design for flexible usage

• Integrated safety systems and pre-use checks

• User-friendly interface with waveform visuals

• Comprehensive alarm and monitoring features

Buy Now

Upgrade your operation theatre with the trusted Prestage-1 Anaesthesia Workstation. Ensure precision, safety, and mobility in anesthesia care.

Buy now from Medansh.in for quality assurance, best prices, and fast delivery.
