Portable Holter ECG System 5000H
In stock
Share this product

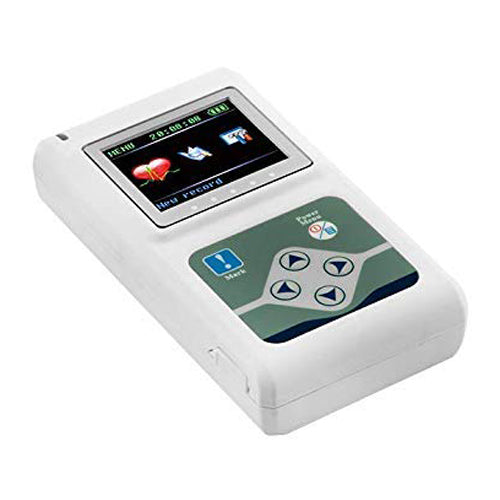

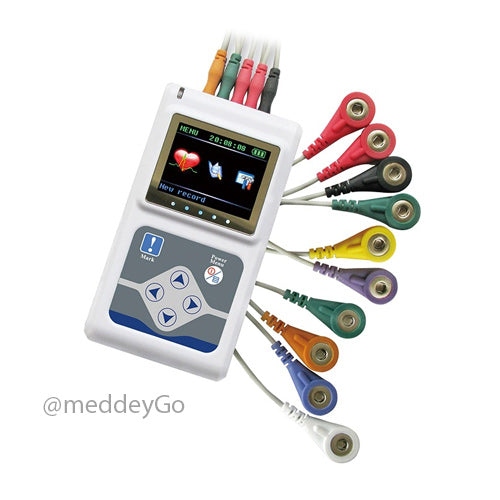

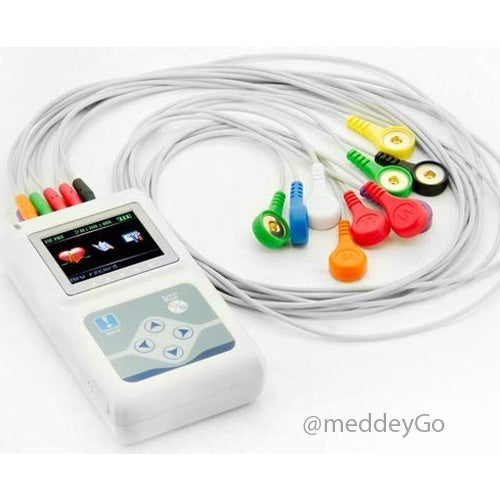

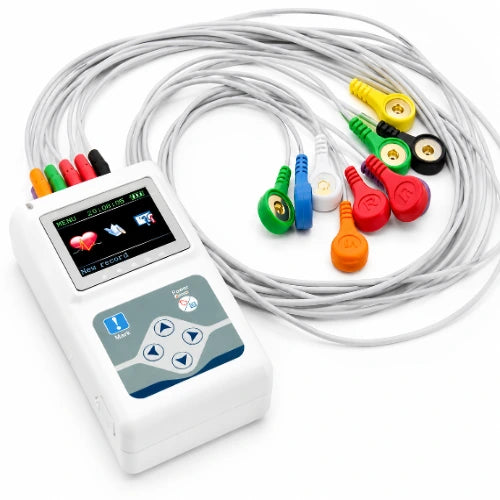

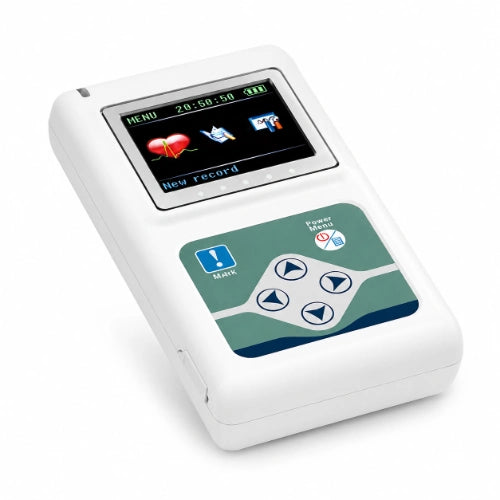

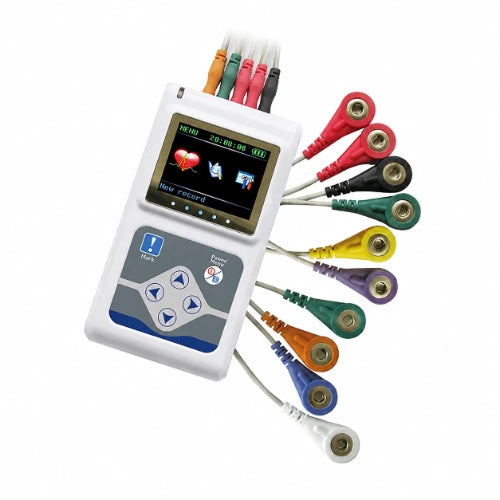

Portable Holter ECG System 5000H
The Portable Holter ECG System 5000H is designed for continuous ambulatory ECG recording in hospitals, cardiology clinics, diagnostic centres and other professional cardiac monitoring environments. The compact recorder supports 12-lead ECG recording for up to 24 hours, allowing cardiac electrical activity to be captured over an extended monitoring period.
The system combines portable recording with waveform preview, record review, event marking and real-time clock functionality. Therefore, clinicians can record the accurate start time of sampled ECG data and review recorded information as part of the Holter analysis workflow. In addition, the built-in TF card provides convenient data storage without requiring frequent card insertion and removal.
The recorder incorporates anti-jamming and shock-resistant design features to support stable operation during ambulatory monitoring. A high-resolution OLED display provides waveform and device-status visibility, while the USB 2.0 interface supports fast transfer of recorded information for computer-based review and analysis.

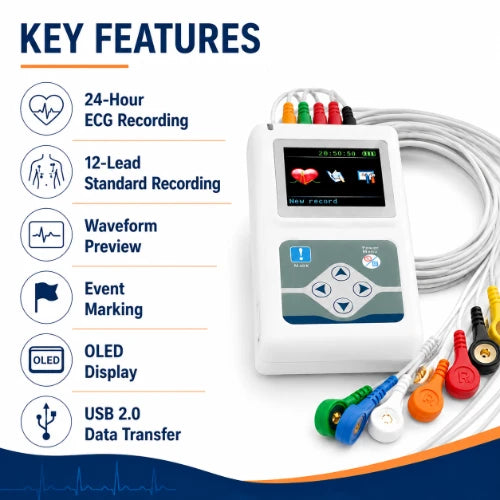

Key Features
- 24-Hour ECG Recording: Supports continuous ECG data recording for up to 24 hours for ambulatory cardiac monitoring.
- 12-Lead Standard Recording: Records ECG data according to an international standard 12-lead configuration.
- Waveform Preview: Allows users to preview ECG waveforms directly on the recorder display.
- Record Review Function: Supports review of recorded information as part of the monitoring workflow.
- Event Marking: Allows relevant events to be marked during the recording period for later review.
- Real-Time Clock: Records the start time of sampled data for accurate time-based ECG analysis.
- Built-In TF Card Storage: Internal TF card storage helps minimise repeated card insertion and removal during routine use.
- USB 2.0 Data Transfer: Supports fast transfer of recorded data for computer-based review and analysis.
- OLED Display: High-resolution 160 × 128 display supports clear waveform preview and recorder-status viewing.
- Anti-Jamming Design: Designed with anti-interference capability to support stable ECG recording.
- Shock-Resistant Construction: Aseismatic design supports dependable operation during ambulatory use.
- Compact and Lightweight: Portable recorder weighs approximately 105 g without batteries for convenient patient-worn monitoring.
Monitoring & Data Functions
| Function | Application |
|---|---|
| 24-Hour Recording | Captures ECG information continuously during an extended ambulatory monitoring session. |
| Waveform Preview | Allows waveform visibility directly on the recorder during setup and monitoring. |
| Event Marking | Supports marking of relevant events so recorded data can be correlated during later review. |
| Real-Time Clock | Provides accurate timing information for the beginning of sampled ECG data. |
| TF Card Storage | Stores ECG recording data internally with support for up to 2 GB as per the supplied specifications. |
| USB Data Transfer | USB 2.0 interface supports transfer of recorded information to the analysis system. |
| Fast Case Review | Average review time for a single case can be less than 40 seconds with the specified analysis workflow. |

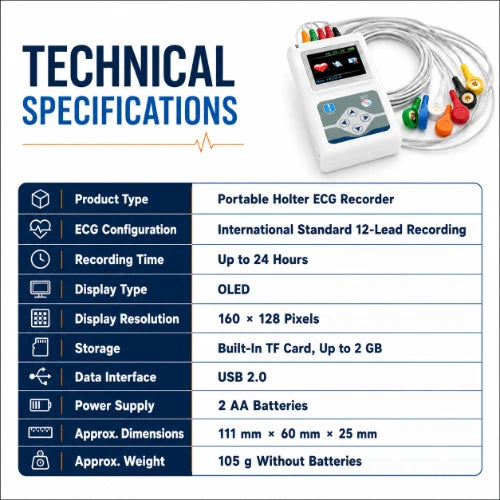

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Portable Holter ECG System 5000H |
| Product Type | Portable Holter ECG Recorder |
| ECG Configuration | International Standard 12-Lead Recording |
| Recording Time | Up to 24 Hours |
| Sampling Accuracy | 12-Bit |
| Display Type | OLED |
| Display Resolution | 160 × 128 Pixels |
| Storage | Built-In TF Card, Up to 2 GB |
| Data Interface | USB 2.0 |
| Average Case Review Time | Less Than 40 Seconds, As Specified |
| Power Supply | 2 AA Batteries |
| Voltage Accuracy | 1 mV ± 5% |
| Sensitivity | 10 mm/mV ± 5% |
| Noise Level | <30 µV |
| Common Mode Rejection Ratio | >60 dB |
| Low-Frequency Characteristic | Time Constant >3.2 Seconds |
| Scan Speed | 25 mm/s ± 5% |
| Enduring Polarization Voltage | ±300 mV DC, Sensitivity Shift <±10% |
| Minimum Measuring Signal | 50 µVp-p |
| Waveform Preview | Supported |
| Record Review | Supported |
| Event Marking | Supported |
| Real-Time Clock | Supported |
| Anti-Jamming Function | Yes |
| Aseismatic / Shock Resistance | Supported |
| Approx. Dimensions | 111 mm L × 60 mm W × 25 mm H |
| Approx. Weight | 105 g Without Batteries |
| Product Safety Type | Type B, Internally Powered |
Benefits
- Supports continuous ECG recording over a 24-hour ambulatory monitoring period.
- 12-lead recording provides comprehensive ECG data for professional analysis.
- Compact recorder supports convenient patient-worn monitoring during normal daily activities as instructed.
- Waveform preview helps healthcare professionals check signal and recording setup.
- Event marking supports correlation of recorded ECG data with relevant patient events.
- Real-time clock helps maintain accurate timing information throughout the recording period.
- Built-in TF card supports convenient storage without frequent card removal.
- USB 2.0 interface supports efficient transfer of recorded ECG information.
- Anti-jamming and shock-resistant design support stable recorder operation.
Suitable For
- Cardiology clinics
- Hospitals
- Diagnostic centres
- Cardiac care departments
- ECG laboratories
- Ambulatory cardiac monitoring services
- Hospital outpatient departments
- Professional cardiac diagnostic setups
How to Use
- Check the Holter recorder, lead cable, battery condition and required recording setup before use.
- Prepare the patient's skin and position ECG electrodes according to the recommended 12-lead Holter configuration.
- Connect the lead cable securely to the electrodes and recorder.
- Switch on the recorder and verify the ECG waveform on the display before starting the monitoring session.
- Confirm the real-time clock and recording settings according to the clinical protocol.
- Start the recording and instruct the patient regarding device care and event marking during the monitoring period.
- After completing the prescribed monitoring duration, stop the recording and disconnect the device according to clinical procedure.
- Transfer recorded information through the USB 2.0 interface to the compatible analysis system.
- Review and interpret the ECG recording using the designated Holter analysis workflow by qualified healthcare professionals.
Why Choose This Portable Holter ECG System?
The Portable Holter ECG System 5000H combines continuous 24-hour ECG recording, 12-lead data acquisition and portable patient monitoring in a compact recorder. Its waveform preview, record review, event marking and real-time clock functions provide useful support throughout the ambulatory ECG recording workflow.
In addition, the built-in TF card reduces the need for repeated insertion and removal of external storage media, while USB 2.0 connectivity supports efficient data transfer for analysis. The OLED display, lightweight construction, anti-jamming capability and shock-resistant design make the system practical for professional cardiac monitoring environments.
Why Choose Medansh?
Medansh offers ECG machines, patient monitoring devices, diagnostic equipment and other professional healthcare products for hospitals, clinics, diagnostic centres and institutional buyers. Buyers can explore cardiac diagnostic and monitoring equipment on Medansh.in according to clinical requirements, facility setup and budget.
Important Note: This Holter ECG system is intended for professional cardiac monitoring and diagnostic support. Electrode placement, recording configuration, data review and ECG interpretation should be performed by appropriately trained healthcare professionals according to clinical protocol and the supplied user manual.
Frequently Asked Questions
What is the Portable Holter ECG System 5000H used for?
It is designed for continuous ambulatory ECG recording over an extended period, including up to 24-hour monitoring as specified.
Does this Holter system support 12-lead ECG recording?
Yes. The supplied specifications state that the recorder supports an international standard 12-lead ECG recording configuration.
How long can the system record ECG data?
It supports ECG recording for up to 24 hours according to the supplied product information.
Can ECG waveforms be previewed on the device?
Yes. The recorder provides waveform preview functionality through its OLED display.
What is the display resolution?
The specified OLED display resolution is 160 × 128 pixels.
How is ECG data stored?
The recorder uses a built-in TF card with storage capacity of up to 2 GB according to the supplied specifications.
How is recorded data transferred?
Recorded information can be transferred using the USB 2.0 interface to the compatible Holter analysis system.
Does the device support event marking?
Yes. Event marking is included so relevant events during the recording period can be identified during subsequent review.
What batteries does the recorder use?
The supplied specifications list two AA batteries as the recorder's power source.
What are the approximate dimensions and weight?
The recorder measures approximately 111 mm × 60 mm × 25 mm and weighs approximately 105 g without batteries.
