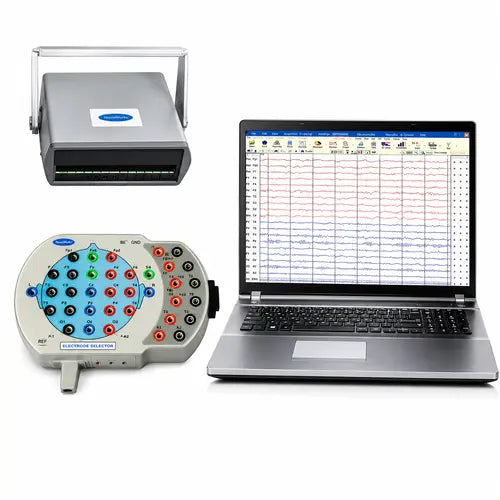

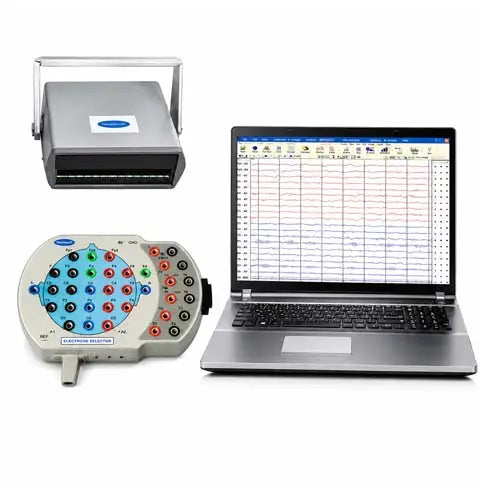

Portable EEG Machine 24/32 Channel USB Powered System
The Portable EEG Machine 24/32 Channel USB Powered System is designed for professional EEG recording and neurological assessment in hospitals, neurology clinics, diagnostic centres, neurophysiology labs, sleep study centres and medical colleges. It supports routine EEG recording, brain activity monitoring and clinical EEG reporting with flexible channel options.
This portable EEG system is available in 24 channel and 32 channel variants. It works with PC USB power and includes high-intensity white LED photic stimulation, automatic impedance measurement, digital filters and advanced waveform review tools for clinical EEG workflows.
The software supports online and offline event marking, comment editing and waveform reformatting for gain, filter and sweep speed. Optional configurations with video and SpO2 support make it suitable for advanced EEG monitoring setups where extended patient observation is required.
Available Variants
| Variant | Details |
|---|---|
| Variant 1 | 24 Channel Portable EEG Machine |
| Variant 2 | 32 Channel Portable EEG Machine |
Key Features
- 24 and 32 Channel Options: Choose the channel configuration according to clinical workflow needs.
- USB Powered Operation: Works through PC USB power for simple setup and daily use.
- Compact Portable Design: Lightweight structure supports easy movement between rooms and departments.
- Photic Stimulation: High-intensity white LED photic stimulator supports EEG activation procedures.
- Automatic Impedance Check: Built-in impedance measurement helps verify electrode contact.
- Digital Filter Support: High cut, low cut and notch filters help improve waveform clarity.
- Event and Comment Tools: Supports editing, marking and reviewing events and comments online or offline.
- Waveform Reformatting: Allows adjustment of gain, filter and sweep speed during review.
- Database Management: Helps organise patient EEG records with search and review options.
- Optional Video and SpO2: Selected configurations can include video and SpO2 support.

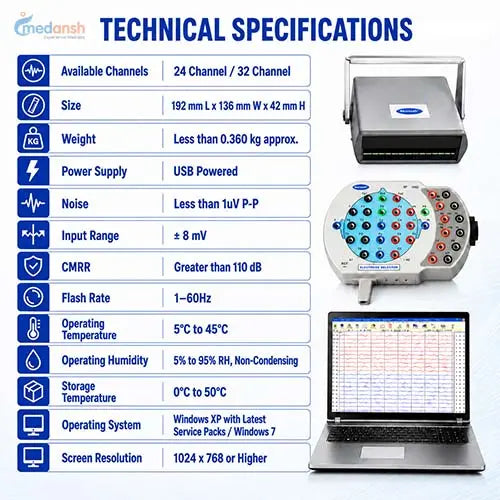

Technical Specifications
| Specification | Details |
|---|---|
| Available Channels | 24 Channel / 32 Channel |
| Size | 192 mm L x 136 mm W x 42 mm H |
| Weight | Less than 0.360 kg approx. |
| Input Channels | 24 / 32 |
| Display Channels | 24 / 32 |
| Photo Stimulator | High Intensity White LEDs |
| Power Supply | USB Powered |
| Frequency Band Range | 0.1 to 100Hz |
| Input Impedance | Greater than 10 MΩ |
| Noise | Less than 1uV P-P |
| Input Range | ± 8 mV |
| CMRR | Greater than 110 dB |
| Sampling | 1024 Hz at ADC, 256 Hz for Internal Storage |
| A/D Conversion | 24 Bit |
| Impedance Measurement | Automatic, Built-in |
| High Cut Filter | 0.5–100Hz Digital Filter |
| Low Cut Filter | 0.1–7Hz Digital Filter |
| Notch Filter | 50 / 60Hz Digital Filter |
| Time Resolution | 7.5, 15, 30, 60 mm/s |
| Flash Rate | 1–60Hz |
| Operating Temperature | 5°C to 45°C |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Storage Temperature | 0°C to 50°C |
| Operating System | Windows XP with Latest Service Packs / Windows 7 |
| Screen Resolution | 1024 x 768 or Higher |
Standard Accessories
| Accessory | Quantity |
|---|---|
| Respiration Transducer | 1 No. |
| Electrodes Placement Card | 1 No. |
| EEG Paste | 2 Jars |
| EEG Electrodes | 25 / 33 Nos. |
| ECG Electrodes | 2 Nos. |
| EMG Electrodes | 2 Nos. |
| Photic Flash | 1 No. |
| Photic Flash Flat Cable | 1 No. |
| USB Cable | 1 No. |
| Patient Ground Cable | 1 No. |
| Event Marker | 1 No. |
| User Manual / CD | 1 No. |
| Head Box | 1 No. |
Optional Accessories
- Camera
- Capture Card
- Audio Cable
- Signal Power Supply Cable
- EEG Trolley
- Photic Stand
Available Configurations
| Configuration | Details |
|---|---|
| EEG 24Ch | 24 Channel EEG USB Powered Machine |
| EEG 24Ch-V | 24 Channel EEG USB Powered Machine with Video |
| EEG 24Ch-S | 24 Channel EEG USB Powered Machine with SpO2 |
| EEG 24Ch-SV | 24 Channel EEG USB Powered Machine with SpO2 + Video |
| EEG 32Ch | 32 Channel EEG USB Powered Machine |
| EEG 32Ch-V | 32 Channel EEG USB Powered Machine with Video |
| EEG 32Ch-S | 32 Channel EEG USB Powered Machine with SpO2 |
| EEG 32Ch-SV | 32 Channel EEG USB Powered Machine with SpO2 + Video |
Product Benefits
- Supports professional EEG recording in neurology and diagnostic setups.
- 24 and 32 channel options help facilities choose according to requirement.
- USB powered operation makes setup simple with compatible PC systems.
- 24-bit A/D conversion supports high-quality signal acquisition.
- Built-in impedance measurement supports electrode contact checking.
- Event marking and comment editing improve reporting workflow.
- Advanced database tools help organise patient EEG records.
- Optional video and SpO2 configurations support advanced EEG monitoring needs.
Suitable For
- Neurology clinics
- Hospitals with EEG departments
- Diagnostic centres
- Neurophysiology laboratories
- Sleep study centres
- Medical colleges and teaching hospitals
- Epilepsy care centres
- Healthcare buyers looking for portable EEG equipment
Applications
- Routine EEG recording
- Neurology diagnostic support
- Epilepsy evaluation support
- Brain activity monitoring
- Sleep and neurophysiology workflow support
- Clinical EEG reporting
- Medical teaching and training use
- Optional video EEG and SpO2-supported monitoring
Why Choose This Portable EEG Machine?
This portable EEG machine is suitable for healthcare facilities that need 24 channel or 32 channel EEG recording with USB-powered operation. Its compact design, photic stimulation support, database tools and waveform editing features make it practical for clinical EEG workflows.
With automatic impedance measurement, digital filters, high CMRR, photic stimulation and optional video / SpO2 configurations, it is useful for hospitals, diagnostic centres and neurology departments that need flexible EEG recording options.
Buying Guidance
Before ordering, confirm whether your facility needs 24 channel or 32 channel EEG. Also check if you require optional video, SpO2, camera, capture card, EEG trolley, photic stand or other accessories. Confirm PC compatibility, screen resolution, installation support and training before purchase.
Clinical Use Note: This EEG machine should be used by trained healthcare professionals or EEG technicians. EEG findings should be interpreted by qualified neurologists or authorised medical professionals.
FAQs
1. What is this portable EEG machine used for?
It is used for EEG recording and brain activity monitoring in hospitals, neurology clinics and diagnostic centres.
2. Which channel options are available?
This machine is available in 24 channel and 32 channel variants.
3. Is this EEG machine USB powered?
Yes, it operates with PC USB power.
4. Does it support photic stimulation?
Yes, it includes a high-intensity white LED photo stimulator.
5. Does it support video EEG?
Video EEG is available in selected configurations with video support.
6. Is SpO2 available?
Integrated SpO2 is available as an optional configuration.
7. What operating system is required?
The system supports Windows XP with latest service packs installed or Windows 7, with 1024 x 768 or higher screen resolution.
