Photo Therapy Unit Standing Model
In stock
Share this product
Product details

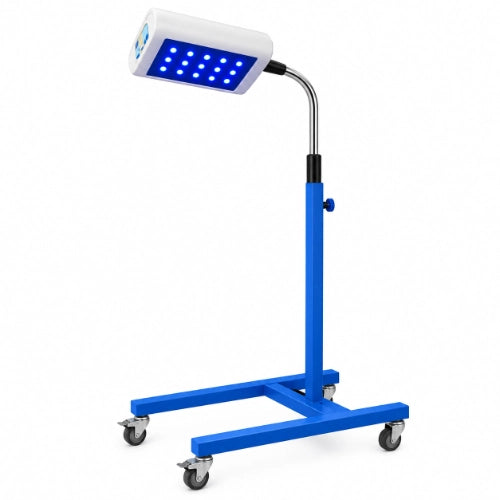

Photo Therapy Unit Standing Model
The Photo Therapy Unit Standing Model is designed for neonatal phototherapy applications in hospitals, maternity centres, NICUs and paediatric care environments. It uses high-power blue LED light within the specified 420–480 nm wavelength range to support phototherapy treatment protocols under professional medical supervision.
The unit is equipped with approximately 9–12 high-power blue LEDs, with white LEDs available as an optional configuration. Its height-adjustable standing design allows the light source to be positioned according to the treatment setup, while four wheels support convenient movement between neonatal care areas.
The supplied specifications describe the system as suitable for overhead phototherapy use and also reference a configuration combining overhead and undersurface phototherapy with a baby bassinet. Therefore, the exact final configuration should be confirmed before purchase according to the required hospital setup.
Key Features
- High-Power LED Phototherapy: Uses 9–12 high-power blue LEDs for neonatal phototherapy applications.
- 420–480 nm Wavelength: Operates within the specified blue-light wavelength range commonly used in phototherapy systems.
- High Irradiance Output: Supplied specifications list irradiance greater than 42 mW/cm²/nm at a distance of 30 cm.
- Long LED Life: Light source lifetime is specified at a minimum of approximately 25,000 hours.
- Stable Illumination: Designed for less than 10% variation in intensity over a 6-hour period.
- Adjustable Height: Standing frame height can be adjusted from approximately 1230 mm to 1600 mm.
- Portable Design: Four-wheel configuration supports convenient repositioning in neonatal and hospital areas.
- Effective Treatment Area: Provides an effective illumination area of approximately 50 cm × 30 cm.
- Wide Input Voltage: Supports 100–240 V, 50–60 Hz electrical input.
Phototherapy Functions
| Function | Application |
|---|---|
| Blue LED Phototherapy | Provides blue-light exposure within the 420–480 nm wavelength range for neonatal phototherapy protocols. |
| Height Adjustment | Allows the phototherapy head to be positioned according to the treatment setup and recommended working distance. |
| Portable Movement | Four wheels allow the unit to be moved between suitable clinical areas. |
| Overhead Illumination | Supports phototherapy illumination from above the infant treatment area. |
| Combination Configuration | Supplied information also references overhead and undersurface phototherapy combined with a baby bassinet, depending on model configuration. |
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Photo Therapy Unit Standing Model |
| Product Category | Phototherapy Unit |
| Lamp Type | LED |
| Number of LEDs | 9–12 High-Power Blue LEDs |
| White LED Option | Optional |
| Wavelength | 420–480 nm |
| Listed Irradiance | >42 mW/cm²/nm at 30 cm, as provided |
| Effective Area | 50 cm × 30 cm |
| Light Source Life | Minimum 25,000 Hours |
| Illumination Change | Less Than 10% After 25,000 Hours, as Specified |
| Intensity Variation | Less Than 10% Over 6 Hours |
| Input Voltage | 100–240 V AC |
| Frequency | 50–60 Hz |
| Number of Wheels | 4 |
| Portable | Yes |
| Front Unit Dimensions | 18" L × 8.5" W × 3" H |
| Adjustable Height | Minimum 1230 mm / Maximum 1600 mm |
| Overall Length | 800 mm |
| Overall Width | 720 mm |
| Primary Application | Neonatal Phototherapy |
Benefits
- Provides blue LED phototherapy within the specified 420–480 nm wavelength range.
- High-power LEDs support consistent illumination across the treatment area.
- Height adjustment allows flexible positioning according to the clinical setup.
- Four-wheel design supports convenient movement within neonatal care areas.
- Long LED operating life can help reduce frequent light-source replacement.
- Stable intensity supports consistent phototherapy sessions.
- Wide voltage compatibility makes installation practical across different hospital environments.
Suitable For
- Neonatal intensive care units
- Hospitals
- Maternity hospitals
- Paediatric departments
- Newborn care units
- Nursing homes with neonatal facilities
- Clinical neonatal treatment areas
How to Use
- Place the phototherapy unit on a stable hospital floor near the infant treatment area.
- Inspect the light source, frame, wheels and electrical connection before use.
- Position the unit according to the recommended working distance and clinical protocol.
- Adjust the height of the light head between the specified minimum and maximum positions as required.
- Ensure that the infant is positioned according to neonatal phototherapy protocol and protected as directed by the treating clinical team.
- Switch on the unit and verify that the LEDs are operating normally.
- Monitor the infant and treatment duration according to the physician's or neonatal care protocol.
- Do not alter treatment distance, exposure or duration outside the prescribed clinical guidance.
- After use, switch off the unit and clean external surfaces according to hospital infection-control procedures.
Why Choose This Photo Therapy Unit Standing Model?
The Photo Therapy Unit Standing Model combines high-power blue LED illumination, adjustable height and portable movement in a practical neonatal phototherapy system. Its 420–480 nm wavelength range and effective treatment area make it suitable for supervised newborn phototherapy applications.
The four-wheel mobile frame allows healthcare staff to reposition the unit within neonatal care environments, while the long LED life and stable illumination characteristics support repeated professional use. The height-adjustable design also helps clinicians position the light source according to the treatment setup and required working distance.
Why Choose Medansh?
Medansh offers neonatal equipment, phototherapy units, infant warmers and hospital-care products for NICUs, maternity hospitals, paediatric departments and institutional healthcare buyers. Buyers can explore suitable neonatal care equipment on Medansh.in according to clinical requirements, facility setup and budget.
Important Note: This device is intended for professional neonatal phototherapy use under qualified medical supervision. The supplied specifications contain two different irradiance references: approximately 4.5 µW/cm²/nm in one statement and >42 mW/cm²/nm at 30 cm in another. Please confirm the exact irradiance specification and final unit configuration before purchase and clinical use.
Frequently Asked Questions
What is the Photo Therapy Unit Standing Model used for?
It is designed for neonatal phototherapy applications in hospitals, NICUs and maternity-care environments.
What wavelength does the unit use?
The supplied specifications list a wavelength range of 420–480 nm.
How many LEDs are used?
The unit is specified with approximately 9–12 high-power blue LEDs, with white LEDs available as an optional configuration.
What is the effective treatment area?
The specified effective illumination area is approximately 50 cm × 30 cm.
Is the height adjustable?
Yes. The height can be adjusted from approximately 1230 mm to 1600 mm.
Is the unit portable?
Yes. It is fitted with four wheels for movement within suitable clinical areas.
What is the LED life?
The specified light-source lifetime is a minimum of approximately 25,000 hours.
What electrical supply is required?
The unit supports an input voltage of 100–240 V at 50–60 Hz.
What are the overall dimensions?
The supplied specifications list an overall length of approximately 800 mm and width of approximately 720 mm, with adjustable height from 1230 mm to 1600 mm.
