Medansh Electric Gait Trainer with Dual Motor System | Robotic Body Weight Support for Physiotherapy Rehab

Medansh Electric Gait Trainer with Dual Motor System | Robotic Body Weight Support for Physiotherapy Rehab

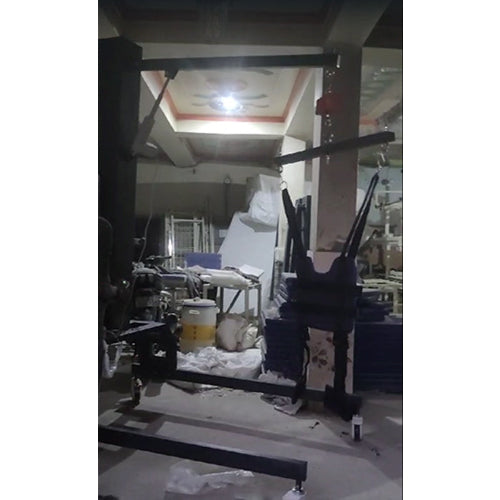

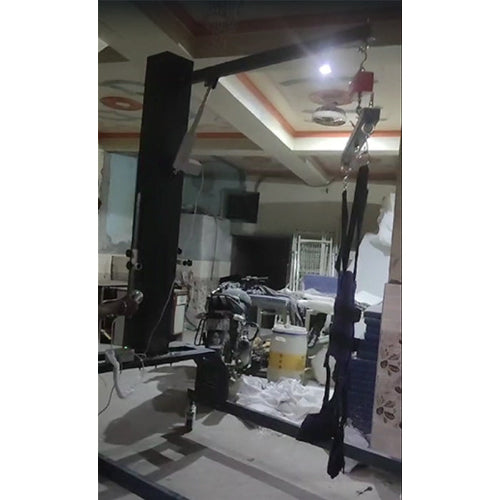

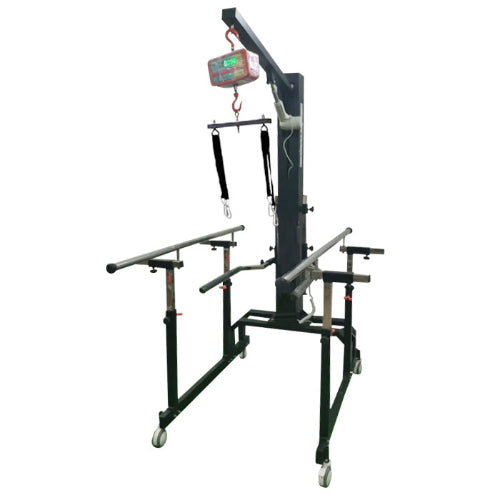

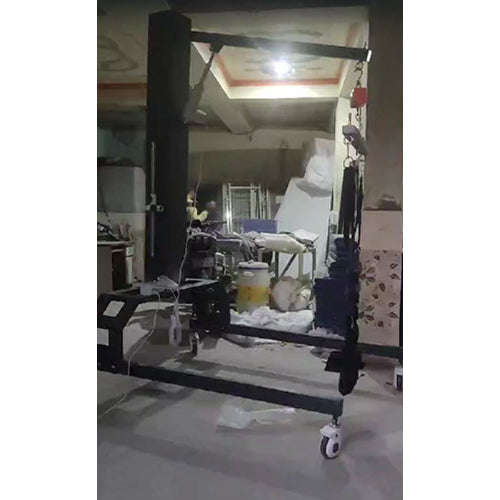

The Medansh Electric Gait Trainer (Double Motor) is a next-generation rehabilitation device designed to provide automated, safe, and controlled support for patients re-learning to walk. It features dual motors—one for vertical lifting of the patient using a harness, and the second for fine-tuned control—ensuring even body weight distribution and minimal manual intervention.

This system is particularly beneficial for patients recovering from stroke, spinal cord injuries, head trauma, or post-operative orthopaedic conditions. Its adjustable parallel bars offer lateral stability, while the electric lift ensures seamless patient handling and reduced strain on caregivers.

Perfect for rehabilitation clinics, neuro centers, and hospitals seeking advanced gait training systems.

Specifications

• Brand: Medansh
• Product Type: Electric Gait Trainer with Dual Motor
• Frame Material: Heavy-duty steel with powder coating
• Motor System:
  • Motor 1: Vertical lift for patient harness support
  • Motor 2: Load balancing & precision control
• Remote Control: Wired control panel for lift operation
• Harness Type: Padded, adjustable with groin and back support
• Parallel Bars: Adjustable height and width
• User Weight Capacity: Up to 130 kg
• Wheels: 4 caster wheels with locking mechanism
• Power Supply: 220V AC
• Dimensions: Approx. 120 x 85 x 200 cm
• Warranty: 1 year on motor

How to Use

1. Position the Patient: Bring the gait trainer over the patient’s wheelchair or bed.
2. Attach Harness: Fit the harness snugly around the torso and thighs.
3. Use Remote Control: Use the wired controller to gently lift the patient to an upright position.
4. Adjust Bars: Set the parallel bars to the correct height for hand support.
5. Begin Training: Guide the patient forward while monitoring balance and comfort.
6. Lower After Session: Use the motor control to bring the patient back down safely.

⚠️ Precautions

• Ensure the weight does not exceed the recommended limit (130 kg).
• Always inspect the harness straps before each use.
• Do not use in wet areas or near water.
• Ensure the device is connected to a grounded power source.
• Never leave a patient unattended during use.

❓ FAQs

Q1: What are the benefits of a dual motor gait trainer over manual ones?
A: Dual motors reduce caregiver effort, provide smoother lifting, and enable safer body weight distribution for better rehab outcomes.

Q2: Is this suitable for home use?
A: It is designed for clinical settings due to its size and motorized functionality.

Q3: What type of patients benefit most from this device?
A: Stroke survivors, spinal cord injury patients, traumatic brain injury cases, and post-operative orthopaedic patients.

Q4: Can the harness be replaced or upgraded?
A: Yes, harnesses are detachable and interchangeable with compatible models.

Q5: Is the lifting speed adjustable?
A: Yes, the remote offers variable lifting control for smooth operation.

Country of Origin : India
Manufacturer/Importer/Marketed By : Meddey Technologies Pvt Ltd.C-75, First Floor DDA Sheds,Industrial Area , Phase 1 , Okhla , New Delhi - 110020 , Phone No-  +91 8586-012345
