Infusion Pump IP-05 Portable IV Pump for Hospitals
In stock
Share this product

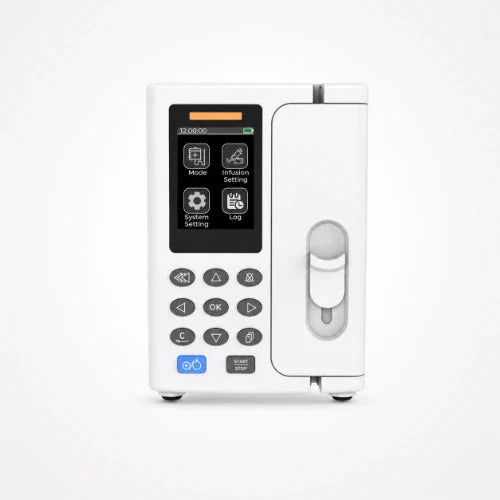

Infusion Pump IP-05 Portable IV Pump for Hospitals
The Infusion Pump IP-05 is a compact and lightweight medical infusion pump designed for controlled fluid and medication delivery in professional healthcare environments. It is suitable for hospitals, ICUs, emergency departments, operation theatres, nursing units, clinics and patient care areas where accurate infusion control is required.
This infusion pump comes with a 2.8 inch TFT color screen, multiple infusion modes, audible and visual alarms, pressure detection, air bubble detection, KVO function and rechargeable lithium battery. In addition, its portable design makes it useful for bedside, ward and critical care infusion workflows handled by trained healthcare professionals.
Key Features
- Portable infusion pump for controlled IV fluid and medication delivery.
- 2.8 inch TFT color screen for clear infusion setting display.
- Supports time mode, speed mode, drip mode and weight mode.
- Compatible with various single-use infusion sets of 20 drops/ml.
- Infusion accuracy of ±5% as per supplied product details.
- Audible and visual alarm system supports timely user alerts.
- Occlusion pressure detection with selectable pressure levels from 60 kPa to 130 kPa.
- Air bubble detection with selectable bubble size sensitivity.
- KVO function supports keep-vein-open workflow where clinically appropriate.
- Built-in rechargeable lithium battery supports portable use during care workflow.
Technical Specifications
| Product Type | Medical Infusion Pump |
|---|---|
| Model | IP-05 |
| Screen | 2.8 Inch TFT Color Screen |
| Applicable Infusion Set | Various Brands of Single-Use Infusion Set, 20 Drops/ml |
| Infusion Set Diameter | 3.4 mm - 4.5 mm |
| Infusion Modes | Time Mode, Speed Mode, Drip Mode, Weight Mode |
| Flow Rate Range | 0.1-10000 ml; 0.1-9999.9 ml, Increment 0.1 |
| Infusion Time Setting | 00:00:01 - 99:59:59, Increment 1 Second |
| Fast Push Speed | 1200 ml/h |
| Fast Speed | 1200 ml/h |
| Purge Rate | 1200 ml/h |
| Infusion Accuracy | ±5% |
| KVO Rate | 0.5, 1, 2, 3, 4, 5 ml/h or Off |
| Occlusion Pressure | 60, 70, 80, 90, 100, 110, 120, 130 kPa |
| Air Bubble Detection | 50 µL, 100 µL, 250 µL, 500 µL, 800 µL |
| AC Power Supply | 100-240V, 50/60Hz |
| External DC Power Supply | 7.4V |
| Battery | Internal Rechargeable Lithium Battery, 1800 mAh |
| Battery Working Time | Around 5 Hours at 100 ml/h Infusion Rate with a New Battery |
| Fuse | T1A |
| Operating Environment | Temperature +10°C to +30°C; Relative Humidity ≤70%; Atmospheric Pressure 86 kPa - 106 kPa |
| Storage Environment | Temperature -10°C to +55°C; Humidity ≤80% |
| Dimensions | 128 mm × 112.5 mm × 183.5 mm |
Benefits of Infusion Pump
This infusion pump supports controlled infusion delivery in clinical, ICU, emergency and ward-based patient care workflows. As a result, healthcare staff can set prescribed infusion parameters and monitor infusion status more efficiently.
- Supports controlled IV fluid and medication delivery.
- Multiple infusion modes help manage different therapy requirements.
- Compact body supports easy mounting and movement between care areas.
- Audible and visual alarms support user awareness during infusion events.
- Pressure detection helps identify occlusion-related conditions.
- Air bubble detection supports safer infusion workflow when used correctly.
- Rechargeable battery supports use during movement or short power transition.
- KVO rate options support keep-vein-open workflow where clinically required.
Who Should Buy This?
The Infusion Pump IP-05 is suitable for healthcare facilities that need a compact and reliable IV infusion pump for controlled fluid or medication delivery. Moreover, it is useful where multiple infusion modes, alarms, battery support and safety detection functions are required.
- Hospitals and ICUs for controlled infusion delivery.
- Emergency departments for patient care and infusion workflow support.
- Operation theatres for controlled fluid delivery during procedures.
- Nursing wards for routine IV infusion management.
- Clinics and infusion rooms for prescribed infusion therapy.
- Recovery rooms for post-procedure care support.
- Healthcare buyers looking for a compact portable infusion pump.
Common Applications
- Controlled IV infusion delivery
- Medication and fluid administration support
- ICU and emergency infusion workflow
- Operation theatre infusion support
- Nursing ward infusion management
- Infusion room therapy workflow
- Patient care area infusion monitoring
- Portable infusion use during movement or power transition
How to Use Safely
- Place or mount the infusion pump securely near the patient.
- Connect the pump to AC power or confirm sufficient battery charge.
- Use a compatible single-use infusion set as per supplied specification.
- Install the infusion set correctly according to the user manual.
- Select the required infusion mode: time, speed, drip or weight mode.
- Set prescribed infusion parameters only as directed by clinical protocol.
- Prime the infusion line and check for air bubbles before starting infusion.
- Monitor the screen, alarms, pressure status, battery level and patient condition during use.
Why Choose This IP-05 Infusion Pump?
This IP-05 infusion pump is designed for healthcare facilities that need a compact, multi-mode infusion device with color display, alarm system, pressure detection, air bubble detection, KVO options and rechargeable battery support. In addition, its broad setting range and portable structure make it practical for routine and critical care workflows.
- Compact IP-05 model for hospital and clinical infusion use.
- Multiple infusion modes support different therapy workflows.
- 2.8 inch TFT screen supports clear operation visibility.
- Pressure and air bubble detection support safer monitoring.
- Good choice for hospitals, ICUs, wards, clinics and infusion rooms.
FAQs
```What is an infusion pump used for?
An infusion pump is used to support controlled delivery of fluids or medications through compatible infusion sets under trained medical supervision.
Which infusion modes are available in IP-05?
The IP-05 infusion pump supports time mode, speed mode, drip mode and weight mode for different infusion workflow needs.
What is the infusion accuracy of this pump?
The supplied infusion accuracy is ±5%. Correct infusion set installation, priming and monitoring are important for safe use.
Does this infusion pump have air bubble detection?
Yes, it supports air bubble detection with selectable bubble sizes including 50 µL, 100 µL, 250 µL, 500 µL and 800 µL.
How long does the battery work?
The 1800 mAh rechargeable lithium battery provides around 5 hours working time at 100 ml/h infusion rate with a new battery.
Who should operate this infusion pump?
This infusion pump should be operated only by trained healthcare professionals following prescription, infusion protocol, alarm instructions and patient monitoring requirements.
```
