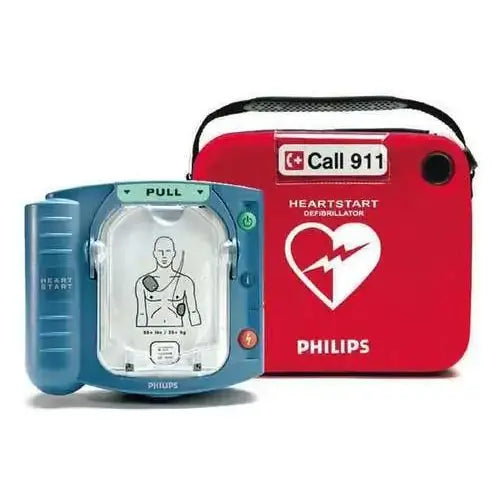

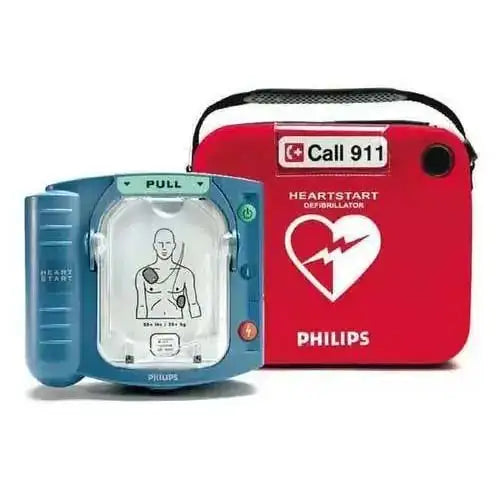

HeartStart HS1 AED Defibrillator

Save 14%
Rs. 102,900 Rs. 120,000
Tax included.

In stock

1 Lakh+
Hospitals Served
22,000+
Delivery Pincodes
CE & ISO
Certified Device
EMI
Easy Financing
  • Free Shipping
  • Easy Return

Ask a question

The fields marked * are required.

HeartStart HS1 AED Defibrillator

The HeartStart HS1 AED Defibrillator is an automated external defibrillator designed for emergency response during suspected sudden cardiac arrest. It is suitable for hospitals, clinics, ambulances, offices, schools, gyms, public facilities and first-aid response locations.

This AED is lightweight and compact, weighing approximately 1.5 kg with battery and pads cartridge installed. It uses SMART Biphasic technology and is able to deliver a shock quickly after CPR pause.

The device performs automatic self-tests on a daily, weekly and monthly basis. It supports 150 Joules adult energy output and 50 Joules pediatric output when used with the optional infant/child SMART Pads Cartridge.

Key Features

  • AED Defibrillator: Designed for emergency defibrillation support during suspected cardiac arrest.
  • SMART Biphasic Waveform: Supports effective defibrillation waveform technology.
  • Fast Shock Delivery: Shock delivery in less than 8 seconds after CPR pause.
  • Quick Shock Support: Typically able to shock after CPR interval in 8 seconds.
  • Adult and Pediatric Use: 150J adult output and 50J pediatric output with suitable cartridge.
  • Automatic Self-Tests: Daily, weekly and monthly self-tests help support device readiness.
  • Compact Build: Lightweight body supports easy placement and carrying.
  • Long Battery Standby: Battery life is up to 4 years in standby mode.

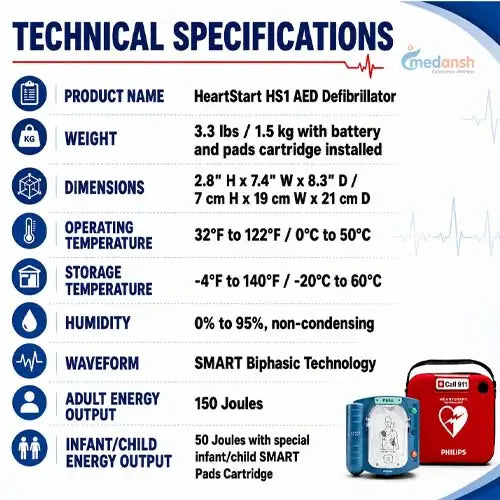

Technical Specifications

Specification Details
Product Name HeartStart HS1 AED Defibrillator
Product Type Automated External Defibrillator
Weight 3.3 lbs / 1.5 kg with battery and pads cartridge installed
Dimensions 2.8″ H x 7.4″ W x 8.3″ D / 7 cm H x 19 cm W x 21 cm D
Battery Life Up to 4 years in standby mode
Shock Delivery Less than 8 seconds after CPR pause
Shock-to-Shock Cycle Time Typically less than 20 seconds between shocks in a series
Quick Shock Able to deliver shock after CPR interval, typically in 8 seconds
Waveform SMART Biphasic Technology
Adult Energy Output 150 Joules
Infant/Child Energy Output 50 Joules with special infant/child SMART Pads Cartridge
Pediatric Defibrillation Peak Current 19 A, 50 J nominal into a 50 ohm load using optional infant/child SMART Pads Cartridge
Operating Temperature 32°F to 122°F / 0°C to 50°C
Storage Temperature -4°F to 140°F / -20°C to 60°C
Humidity 0% to 95%, non-condensing
Self-Tests Daily, weekly and monthly automatic self-tests
Pad Shelf Life 1–2 years from date of manufacture

Product Benefits

  • Supports emergency defibrillation response during suspected sudden cardiac arrest.
  • Compact body makes it easy to store in emergency locations.
  • Lightweight design supports quick carrying when needed.
  • Fast shock delivery helps reduce delay after CPR pause.
  • Automatic self-tests help users monitor readiness.
  • Adult and pediatric energy options are available with the correct cartridge.
  • Suitable for medical facilities, workplaces and public safety setups.

Suitable For

  • Hospitals
  • Clinics
  • Ambulance providers
  • Corporate offices
  • Schools and colleges
  • Gyms and sports centres
  • Hotels, malls and public areas
  • Community emergency response teams

Applications

  • Emergency cardiac response
  • Sudden cardiac arrest support
  • Public access AED placement
  • First-aid room emergency setup
  • Ambulance and responder use
  • Hospital and clinic emergency preparedness
  • Workplace and institutional safety setup

Why Choose This AED Defibrillator?

This AED defibrillator is suitable for organisations that need a compact and reliable emergency-response device. Its automatic self-tests, SMART Biphasic waveform and quick shock capability support emergency readiness in both healthcare and public-access settings.

With adult and pediatric output support, long standby battery life and a lightweight design, it is a practical option for facilities planning an AED emergency response setup.

Buying Guidance

Before ordering, confirm included pads, battery, pediatric cartridge requirement, pad expiry, battery expiry, storage cabinet, signage, training support and replacement accessory availability.

Safety Note: AED use should follow the device voice prompts, CPR protocol and emergency medical guidance. Call emergency medical services immediately during suspected cardiac arrest.

FAQs

1. What is HeartStart HS1 AED used for?

It is used for emergency defibrillation support during suspected sudden cardiac arrest.

2. What waveform technology does it use?

It uses SMART Biphasic technology.

3. What is the adult energy output?

The adult energy output is 150 Joules.

4. Can it support pediatric use?

Yes, it supports 50 Joules pediatric output with the optional infant/child SMART Pads Cartridge.

5. How often does it perform self-tests?

It performs daily, weekly and monthly automatic self-tests.

6. What is the standby battery life?

The battery life is up to 4 years in standby mode.

7. What is the pad shelf life?

The pad shelf life is 1–2 years from the date of manufacture.
