Fiber Optic LED Laryngoscope Set Miller 0, 1, 2

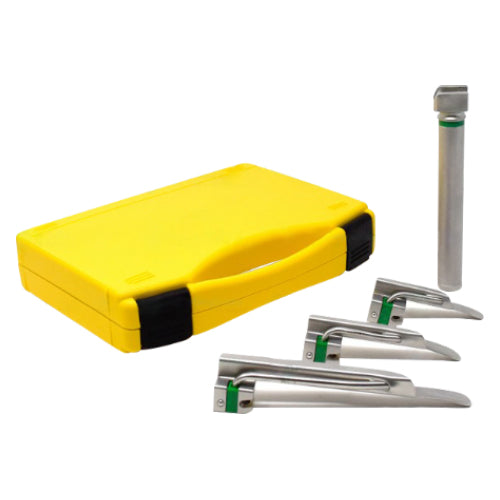

The Fiber Optic LED Laryngoscope Set Miller 0, 1, 2 is designed for professional airway visualization and tracheal intubation support in hospitals, operation theatres, emergency departments, anaesthesia departments and clinical training environments. The set combines reusable straight Miller blades with a handle-mounted LED and enclosed fiber-optic illumination system for clear airway viewing during laryngoscopy.
The LED light source is positioned within the handle and directs illumination through an enclosed glass fiber-optic bundle inside the blade. This protected light pathway helps deliver illumination toward the distal end while keeping the blade profile clean and suitable for professional airway-management procedures.
This configuration includes Miller blade sizes 0, 1 and 2. The broader product family may include additional sizes, but the exact selected set should always be confirmed before purchase. The system is described as using stainless-steel construction, with 304 grade stainless steel stated for the set.

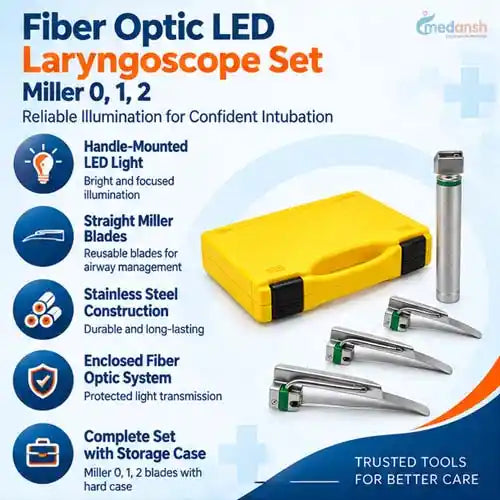

Key Features
- Straight Miller Blades: Reusable straight blades provide the Miller profile for professional airway-management applications.
- Handle-Mounted LED: LED light source is positioned in the handle and directed into the blade’s fiber-optic carrier.
- Enclosed Glass Fiber Bundle: Blade incorporates a protected fiber-optic light path for illumination transmission.
- Stainless Steel Construction: Designed for strength, durability and repeated professional use.
- 304 Grade Material: Current product information lists 304 grade stainless steel for the system.
- Miller 0, 1 & 2 Configuration: Includes three straight blade sizes for different airway requirements.
- Knurled Handle: Textured handle surface supports secure grip and controlled handling during laryngoscopy.
- AA Battery Operation: LED handle operates using two AA batteries as listed.
- Protective Storage Case: Hard cushioned groove-cut plastic case supports organised storage and transport.
Included Blade Configuration
| Blade Size | Blade Profile |
|---|---|
| Miller 0 | Straight Miller |
| Miller 1 | Straight Miller |
| Miller 2 | Straight Miller |

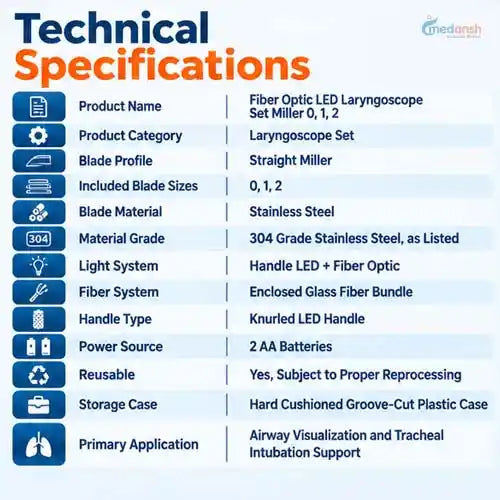

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Fiber Optic LED Laryngoscope Set Miller 0, 1, 2 |
| Product Category | Laryngoscope Set |
| Blade Profile | Straight Miller |
| Included Blade Sizes | 0, 1, 2 |
| Blade Material | Stainless Steel |
| Material Grade | 304 Grade Stainless Steel, as Listed |
| Light System | Handle LED + Fiber Optic |
| Fiber System | Enclosed Glass Fiber Bundle |
| Handle Type | Knurled LED Handle |
| Power Source | 2 AA Batteries |
| Reusable | Yes, Subject to Proper Reprocessing |
| Storage Case | Hard Cushioned Groove-Cut Plastic Case |
| Primary Application | Airway Visualization and Tracheal Intubation Support |
Benefits
- Provides focused illumination through an enclosed fiber-optic pathway.
- Straight Miller blade profile supports professional airway-management technique.
- Three blade sizes provide flexibility for different airway requirements.
- Reusable stainless steel construction supports repeated professional use.
- Knurled handle helps improve grip and control during laryngoscopy.
- Two-AA-battery operation supports convenient portable use.
- Protective storage case helps keep the set organised and protected.
- Suitable for operation theatres, emergency departments and airway-training environments.
Suitable For
- Hospitals
- Operation theatres
- Emergency departments
- Anaesthesia departments
- ICUs
- Medical colleges
- Clinical skill laboratories
- Airway management training centres
How to Use
- Inspect the handle, selected blade, mechanical connection and fiber-optic light path before use.
- Select Miller blade size 0, 1 or 2 according to the airway requirement and clinical protocol.
- Attach the selected blade securely to the compatible LED handle.
- Activate the light source and verify adequate illumination before the procedure.
- Use the laryngoscope according to professional airway-management and intubation technique.
- After use, detach the blade carefully and follow the approved cleaning and reprocessing procedure.
- Inspect the blade and fiber-optic system for damage, reduced light transmission or mechanical wear.
- Store all cleaned and dry components in the protective case.
Why Choose This Fiber Optic LED Miller Laryngoscope Set?
The Fiber Optic LED Laryngoscope Set Miller 0, 1, 2 combines reusable straight Miller blades with an LED-powered fiber-optic illumination system in one compact airway-management set. The protected glass fiber pathway supports efficient light transmission while keeping the illumination source within the handle.
The inclusion of three Miller blade sizes provides flexibility for different airway requirements, while the stainless steel construction, knurled handle and protective storage case make the set practical for routine professional use.
Why Choose Medansh?
Medansh offers laryngoscopes, airway-management equipment, anaesthesia devices and professional clinical instruments for hospitals, operation theatres and institutional healthcare buyers. Buyers can explore suitable airway and emergency-care equipment on Medansh.in according to clinical requirements and facility setup.
Important Note: This product listing is for the Miller 0, 1 and 2 configuration. The broader Miller blade family may include sizes 00 through 3, but not every set contains every size. Confirm the exact blade configuration and blade-handle fiber-optic compatibility before purchase. Laryngoscopy and tracheal intubation should only be performed by appropriately trained healthcare professionals.
Frequently Asked Questions
Which Miller blade sizes are included?
This configuration includes Miller blade sizes 0, 1 and 2.
What blade profile is used?
The blades use the straight Miller profile.
How is illumination provided?
An LED in the handle directs light through an enclosed glass fiber-optic bundle inside the blade.
What material are the blades made from?
The supplied information lists stainless steel construction, with 304 grade stated for the system.
Are the blades reusable?
Yes. The blades are reusable when cleaned, inspected and reprocessed according to the exact product instructions.
What batteries does the handle use?
The supplied specification lists two AA batteries.
Is a protective case included?
Yes. A hard cushioned, groove-cut plastic case is provided for storage and transport.
Can other Miller blade sizes be used?
The broader family may include sizes 00, 0, 1, 2 and 3, but compatibility and the exact blade-handle interface should be confirmed before purchasing additional blades.
Where can this laryngoscope set be used?
It is suitable for hospitals, operation theatres, emergency departments, anaesthesia departments and professional airway-management training environments.
