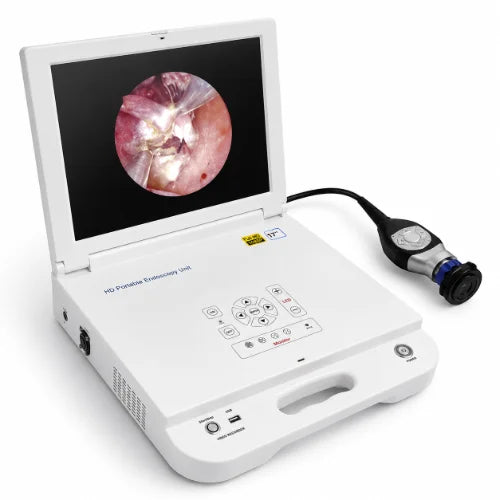

Endoscope Unit with Camera and HD Recording

Endoscope Unit with Camera Attached with Endoscope

The Endoscope Unit with Camera Attached with Endoscope is a professional portable HD endoscopy unit designed to support minimally invasive surgical visualization and diagnostic workflow in clinical environments. It is suitable for hospitals, operation theatres, endoscopy rooms, diagnostic clinics, surgical centres and specialty departments.

This endoscope unit integrates camera, LED light source, medical monitor and HD recording functionality into one compact system. It supports clear image display, high-brightness illumination, image capture and video documentation during compatible endoscopic procedures under trained clinical supervision.

Key Features

• 4-in-1 portable endoscopy unit with camera, LED light source, monitor and HD recorder.
• 17 inch medical monitor supports clear endoscopic viewing during procedures.
• Full HD endoscope camera with 1/2.8 CMOS image device.
• 1000 TVL horizontal resolution supports detailed clinical visualization.
• 80VA LED light source with high brightness for procedure illumination.
• Auto and manual white balance options help adjust image appearance.
• HD recording support with MP4 format and up to 1080P 30fps quality.
• USB disk and removable hard disk support for recording workflow.
• Freeze function supports still-image observation during compatible procedures.
• Portable carry design supports movement between OT, endoscopy rooms and departments.

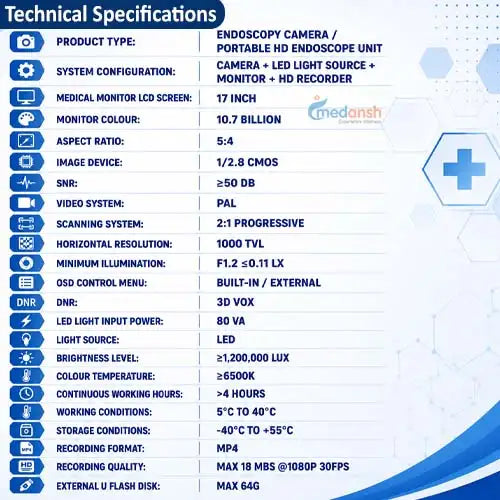

Technical Specifications

Benefits of Endoscope Unit

This endoscope unit combines visualization, illumination and recording support in one compact system. It helps clinical teams view compatible endoscopic procedures clearly, document video records and move the setup between procedure areas when required.

• Combines endoscopy camera, light source, monitor and recorder in one unit.
• Supports clearer clinical visualization through Full HD camera technology.
• High-brightness LED light supports illumination during compatible procedures.
• Built-in recording support helps maintain video documentation.
• 17 inch medical monitor provides a practical display for endoscopic viewing.
• White balance, brightness, AG adjustment and DNR help optimize image display.
• Portable structure supports flexible use across OT and specialty departments.
• Reusable design supports repeated clinical use when maintained correctly.

Who Should Buy This?

The Endoscope Unit with Camera Attached with Endoscope is suitable for healthcare facilities that need a portable HD visualization setup for compatible endoscopy procedures. It is useful where camera, monitor, LED illumination and recording support are required in one system.

• Hospitals for OT and endoscopy room visualization workflow.
• Surgical centres for compatible minimally invasive procedure support.
• Diagnostic clinics for endoscopic visualization and documentation.
• ENT departments for compatible endoscope-assisted viewing workflows.
• Gynecology and urology departments for compatible endoscopy applications.
• Orthopedic departments for selected scope-based visualization support.
• Healthcare buyers looking for a portable HD endoscopy camera unit.

Common Applications

• Laparoscopy support
• Gynecology endoscopy workflow
• Urology visualization support
• ENT endoscopic viewing
• Orthopedic scope-based visualization
• Diagnostic endoscopy support
• Minimally invasive surgery support
• Clinical teaching and procedural documentation

How to Use Safely

• Place the unit on a stable surface in the procedure room or endoscopy setup area.
• Connect the compatible endoscope, camera head, LED light source and required cables.
• Power on the monitor, camera unit, light source and recorder function as required.
• Adjust white balance, brightness and image settings before clinical visualization.
• Confirm proper illumination and video signal on the 17 inch medical monitor.
• Use freeze or recording functions when documentation is required.
• After use, stop recording and save data to compatible USB or hard disk media.
• Clean and maintain connected endoscopic components according to infection-control protocol.

Why Choose This Endoscopy Unit?

This endoscopy unit is designed for healthcare facilities that require a portable and integrated HD visualization system for minimally invasive procedures. Its 4-in-1 design helps reduce the need for multiple separate devices while supporting display, illumination, image control and recording workflow.

• Portable 4-in-1 endoscopy unit for clinical visualization.
• 17 inch monitor, camera, LED light source and recorder in one setup.
• Full HD camera support improves procedure viewing workflow.
• MP4 recording supports documentation and teaching requirements.
• Good choice for hospitals, endoscopy rooms, surgical centres and specialty departments.

FAQs

What is an endoscope unit used for?

An endoscope unit is used for endoscopic visualization and procedure support using compatible endoscopes, camera, light source and monitor display.

Does this endoscope unit include a camera?

Yes, this unit includes a portable HD endoscope camera system with 1/2.8 CMOS image device and 1000 TVL horizontal resolution.

Does this unit support recording?

Yes, it supports MP4 recording with up to 1080P 30fps and supports USB disk and removable hard disk storage.

What display size does this unit have?

The unit includes a 17 inch medical monitor with 5:4 aspect ratio for clinical endoscopic visualization.

Which departments can use this endoscope unit?

It can be used for compatible workflows in laparoscopy, gynecology, urology, ENT, orthopedics and diagnostic endoscopy departments.

Who should operate this endoscope unit?

This unit should be operated by trained doctors, surgeons, endoscopy technicians, OT staff or authorized healthcare professionals following clinical protocol.
