DVT Pump 8 Chambers with 6 Modes for Sequential Compression Therapy

Save 24%
Regular price
Sale price Rs. 34,200 Regular price Rs. 45,000
Tax included.

In stock

1 Lakh+
Hospitals Served
22,000+
Delivery Pincodes
CE & ISO
Certified Device
EMI
Easy Financing
  • Free Shipping
  • Easy Return

Ask a question

The fields marked * are required.

DVT Pump for Sequential Pneumatic Compression Therapy

8️⃣
8 Chambers
Multi-Zone Compression
⚙️
6 Modes
Multiple Settings
💨
Air Compression
Sequential Operation
🏥
Clinical Use
Supervised Therapy

DVT Pump 8 Chambers with 6 Modes

The DVT pump provides controlled sequential air compression. It works with multi-chamber sleeves placed around suitable treatment areas. Therefore, trained healthcare staff can use it during supervised compression therapy.

The system has 8 compression chambers. These chambers inflate in a planned sequence. As a result, pressure moves through different sections of the connected sleeve. This creates a structured compression cycle.

The listed model also provides 6 operating modes. Therefore, trained users can select a suitable mode according to the care plan. The control unit manages air flow through the connected tubes and sleeves.

The supplied configuration includes two leg sleeves. In addition, the kit includes one waist sleeve and one arm sleeve. This gives the system several garment options for suitable compression applications.

The unit can suit hospitals, rehabilitation centres and physiotherapy settings. However, a trained healthcare professional should choose the pressure, mode and session time. Users should also follow the product manual and clinical protocol.

DVT Pump Key Features

8-Chamber System

Multiple chambers provide structured compression zones.

Sequential Compression

The pump sends air through the chambers in a planned sequence.

6 Operating Modes

Multiple modes offer more setting options for trained users.

Multiple Sleeves

The listed kit includes leg, waist and arm sleeves.

Electric Air Pump

The control unit delivers air through connected tubing.

Professional Use

Suitable for supervised compression therapy settings.

How the 8-Chamber DVT Pump Works

First, the user connects the required sleeve to the pump. Next, the air tubes carry pressure from the control unit to the chambers. Then, individual sections inflate according to the selected mode.

As the cycle continues, pressure moves through different zones. Therefore, the system provides sequential pneumatic compression. The exact pressure and timing should match the clinical plan.

Technical Specifications

Specification Details
Product Type DVT Pump / Air Compression Therapy System
Compression Technology Sequential Pneumatic Compression
Number of Chambers 8 Chambers
Operating Modes 6 Modes
Operation Electric Pneumatic Pump
Leg Sleeves 2
Waist Sleeve 1
Arm Sleeve 1
Listed Item Weight Approx. 5 kg
Listed Dimensions 14 × 15 × 12 cm
Use Supervised Compression Therapy

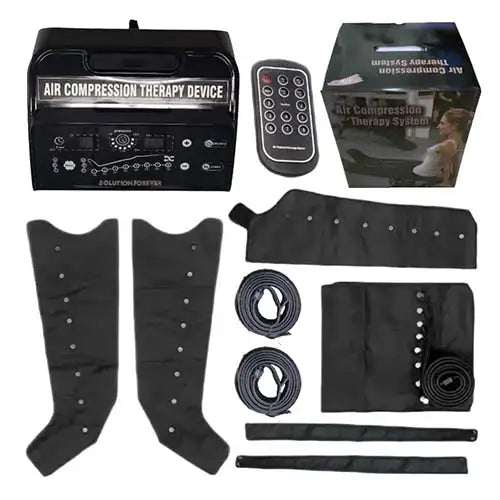

Included Compression Accessories

Leg Sleeves: 2
Waist Sleeve: 1
Arm Sleeve: 1
Air Tubing: Included
Control Unit: Included

Benefits of the 8-Chamber DVT Pump

The DVT pump provides compression through several separate zones. Therefore, it can create a structured pressure sequence across the sleeve.

  • Eight chambers provide multi-zone compression.
  • Sequential operation creates a planned pressure cycle.
  • Six modes give trained users more setting choices.
  • Multiple sleeves support different treatment areas.
  • Electric operation supports repeatable therapy sessions.
  • The complete kit suits supervised clinical use.

DVT Pump Applications

The system can support suitable sequential compression protocols. For example, healthcare teams may use it in supervised recovery and rehabilitation settings.

Hospitals
Rehabilitation Centres
Physiotherapy Clinics
Post-Operative Care
Recovery Settings
Compression Therapy Units

Basic Use Guide

  1. First, inspect the pump, sleeves and air tubes.
  2. Next, choose the correct sleeve for the treatment area.
  3. Fit the sleeve smoothly without unwanted folds.
  4. Then, connect the air tubing securely.
  5. Select the required mode and pressure setting.
  6. Start the compression cycle.
  7. Monitor comfort and skin condition during use.
  8. Stop the session if unusual discomfort occurs.
  9. Finally, remove the sleeve after the cycle ends.

Who Should Consider This DVT Pump?

This DVT pump can suit hospitals, physiotherapy clinics, rehab centres and other supervised healthcare settings. In addition, the multi-sleeve kit can support facilities that need several compression options. A trained professional should always select the treatment settings.

Need Help Choosing Compression Therapy Equipment?

Contact Medansh for product details, availability and bulk requirements.

Call 8586012345
Important Note: This device is intended for supervised compression therapy. A healthcare professional should confirm whether compression is suitable for the patient. Also, follow the manufacturer's instructions for pressure, mode and treatment time. Stop use if unusual pain, skin changes or significant discomfort occurs.

Frequently Asked Questions

1. What is a DVT pump?

A DVT pump is a pneumatic compression device. It sends controlled air pressure into connected compression sleeves.

2. How many chambers does this model have?

This model uses an 8-chamber compression system.

3. How many operating modes are available?

The supplied product specification lists 6 operating modes.

4. Which sleeves come with the system?

The listed kit includes two leg sleeves, one waist sleeve and one arm sleeve.

5. Where can this DVT pump be used?

The system can suit hospitals, rehab centres and physiotherapy clinics. However, trained supervision is important.

6. Can patients choose the pressure themselves?

Patients should not choose pressure settings on their own. A trained healthcare professional should select the correct settings.

7. Does a DVT pump replace medical treatment?

No. The device supports compression therapy within a suitable care plan. It does not replace diagnosis or professional medical treatment.
