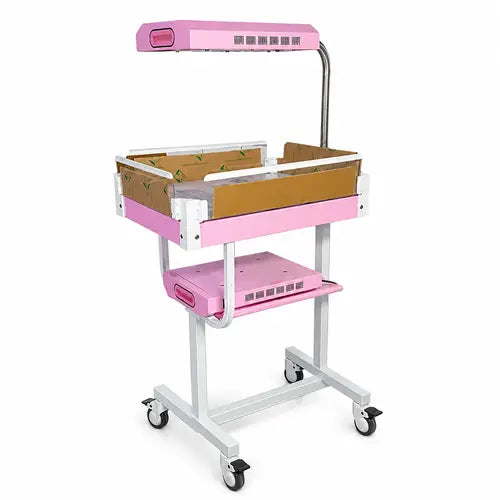

Double Surface LED Phototherapy Machine for NICU
The Double Surface LED Phototherapy Machine for NICU is designed to support neonatal jaundice care in NICUs, maternity hospitals, pediatric wards, newborn care units, and neonatal departments. It provides phototherapy exposure from both the top and bottom surfaces, helping clinicians deliver broader light coverage during bilirubin management.
This double surface phototherapy unit uses high-intensity blue LEDs for neonatal phototherapy support. The dual-surface design includes an overhead lamp and an undersurface light source, allowing more uniform exposure around the baby compared with single-surface phototherapy units.

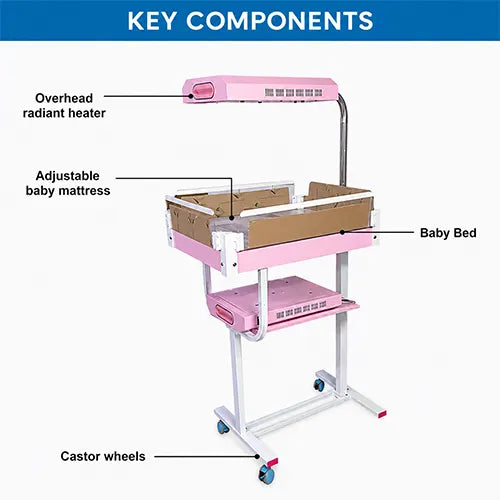

The unit includes a hospital-use stand, detachable transparent bassinet, drop-down sides, height adjustment support, tilting lamp head, and smooth lockable castors. It is suitable for daily newborn care, NICU phototherapy, maternity ward use, pediatric jaundice treatment support, and clinical training environments under trained medical supervision.
Key Features
- Double Surface Coverage: Overhead and undersurface LED units provide broader exposure for neonatal jaundice care.
- High-Intensity Blue LEDs: Blue LED light supports bilirubin management during phototherapy sessions.
- Hospital-Grade Construction: Powder-coated mild steel or stainless steel frame supports stable hospital use as per selected configuration.
- Detachable Transparent Bassinet: Baby cradle with drop-down sides allows easier baby access, care, and monitoring.
- Height Adjustable Stand: Stand adjusts from approximately 1100 mm to 1600 mm with tilting lamp head support.
- Smooth Lockable Castors: Four smooth-rolling lockable antistatic castors help move and position the unit safely.
- Low Power Consumption: Designed for hospital use with power consumption under 100VA as per provided details.
- NICU & Newborn Care Use: Suitable for NICUs, maternity hospitals, delivery rooms, pediatric wards, and newborn care units.

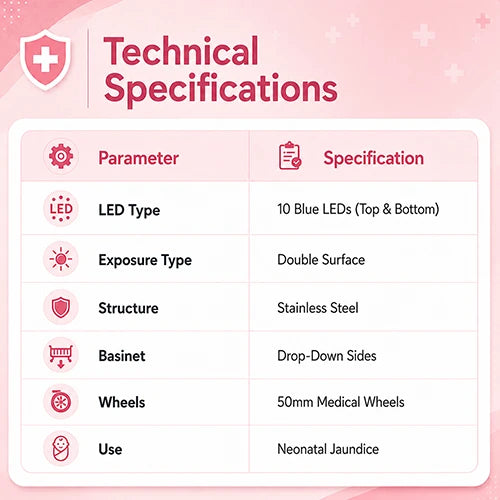

Technical Specifications
| Product Name | Double Surface LED Phototherapy Machine for NICU |
| Product Type | Double Surface LED Phototherapy Unit |
| Electrical | 100–240V AC, 50/60Hz, Low Power Consumption Under 100VA |
| Adjustability | Height Adjustable Stand, Approx. 1100–1600 mm, Tilting Lamp Head |
| Structure | Powder-Coated Mild Steel / Stainless Steel Frame |
| Mobility | Four Smooth-Rolling Lockable Antistatic Castors |
| Bassinet | Detachable Transparent Baby Cradle with Drop-Down Sides |
| Light Source | High-Intensity Blue LEDs, Typically 12–15 LEDs, Optional White LEDs |
| Wavelength | 420–480 nm / 430–490 nm Optimized Spectral Output |
| Irradiance | Uniform Irradiance, Often Above 30–45 µW/cm²/nm, Model Dependent |
| Coverage | Double-Surface Design with Overhead and Undersurface Units |
| Use | Pediatric / Neonatal Phototherapy for Jaundice Care |
| Suitable For | NICUs, Maternity Hospitals, Pediatric Wards, Delivery Rooms, Newborn Care Units and Medical Colleges |
Product Benefits
- Supports advanced neonatal jaundice care in hospital settings.
- Double surface LED coverage improves light exposure from top and bottom.
- High-intensity blue LEDs support bilirubin management during phototherapy.
- Transparent bassinet allows better baby monitoring during therapy.
- Drop-down sides help nurses access the baby more conveniently.
- Height adjustable stand supports precise light positioning.
- Lockable castors make movement easier across NICU and ward areas.
- Durable steel construction supports long-term hospital use.
Applications
The Double Surface LED Phototherapy Machine for NICU is suitable for neonatal jaundice treatment support, NICU phototherapy, maternity hospital newborn care, delivery room support, pediatric ward use, newborn care units, hospitals, clinics, and medical college training environments.
It can support wider and more uniform phototherapy exposure for newborn jaundice care. Final use should depend on bilirubin levels, newborn condition, hospital protocol, pediatrician guidance, eye protection requirements, and trained nursing supervision.
How to Use
- Place the unit on a stable surface and lock the castors after positioning.
- Check the overhead light, undersurface light, bassinet, stand height, and power connection before use.
- Position the newborn correctly inside the transparent bassinet as per hospital protocol.
- Adjust the lamp height and tilt angle according to the required phototherapy distance and coverage.
- Use newborn eye protection as advised by clinical guidelines.
- Monitor baby temperature, hydration, exposure duration, and clinical condition during therapy.
- Clean the bassinet, drop-down sides, and external surfaces as per hospital hygiene protocol after use.
- Schedule regular inspection of LEDs, castors, stand adjustment, and electrical safety as per facility practice.
Why Buy Double Surface LED Phototherapy Machine from Medansh.in?
Buying the Double Surface LED Phototherapy Machine for NICU from Medansh.in is suitable for hospitals, maternity centres, pediatric departments, NICUs, and newborn care units that need reliable neonatal phototherapy support. Its double surface LED coverage, height adjustment, tilting lamp head, detachable transparent bassinet, drop-down sides, and lockable castors make it practical for daily hospital newborn care workflow.
Before ordering, confirm current model configuration, LED count, wavelength range, irradiance level, height adjustment, bassinet type, castor quality, power requirement, warranty terms, accessories, and service support. Specifications may vary as per selected model or configuration.
Clinical Use Note: This phototherapy machine should be used only under trained medical or nursing supervision. Protect the newborn’s eyes as advised, monitor temperature and hydration, and follow hospital neonatal jaundice care protocol.
FAQs
1. What is a double surface phototherapy unit used for?
It is used for neonatal jaundice care by providing phototherapy light exposure from both top and bottom surfaces.
2. How does double surface LED phototherapy help?
It provides wider and more uniform light coverage, which supports bilirubin management during treatment under clinical supervision.
3. Is this unit suitable for NICU use?
Yes, it is suitable for NICUs, maternity hospitals, pediatric wards, delivery rooms, and newborn care units.
4. What is the height adjustment range?
The stand height is adjustable from approximately 1100 mm to 1600 mm as per the provided specifications.
5. Does this unit have a detachable bassinet?
Yes, it includes a detachable transparent baby cradle with drop-down sides for easier access and monitoring.
6. What type of LEDs are used?
The unit uses high-intensity blue LEDs, typically 12–15 LEDs, with optional white LEDs depending on model configuration.
7. Can this phototherapy unit be moved easily?
Yes, it has four smooth-rolling lockable antistatic castors for easy movement and secure placement.
8. Where can I buy Double Surface LED Phototherapy Machine online?
You can buy the Double Surface LED Phototherapy Machine for NICU online from Medansh.in. Before ordering, confirm final specifications, accessories, warranty terms, and service support.
