Contec Syringe Pump

Contec Syringe Pump

The Contec Syringe Pump is a medical syringe infusion pump designed for controlled and accurate administration of medications and fluids in hospitals, ICUs, operation theatres, emergency departments and other professional clinical environments. Its compact design, real-time monitoring display and multiple safety functions support reliable syringe-based infusion during routine and critical-care applications.

The pump is compatible with standard 10 mL, 20 mL, 30 mL and 50 mL syringes and supports multiple compatible syringe brands through automatic syringe detection. The microprocessor-controlled infusion system helps maintain consistent fluid delivery, while the adjustable infusion rate allows clinicians to configure therapy according to syringe size and prescribed clinical requirements.

A 2.8-inch TFT LCD display provides real-time information such as accumulated volume, remaining infusion time and operating status. In addition, audible and visual alarms, adjustable occlusion thresholds, memory retention, purge function and password protection help support safer use in demanding clinical environments.

Key Features

• Automatic Syringe Detection: Identifies compatible syringe specifications and provides an alert if an incorrect syringe is detected.

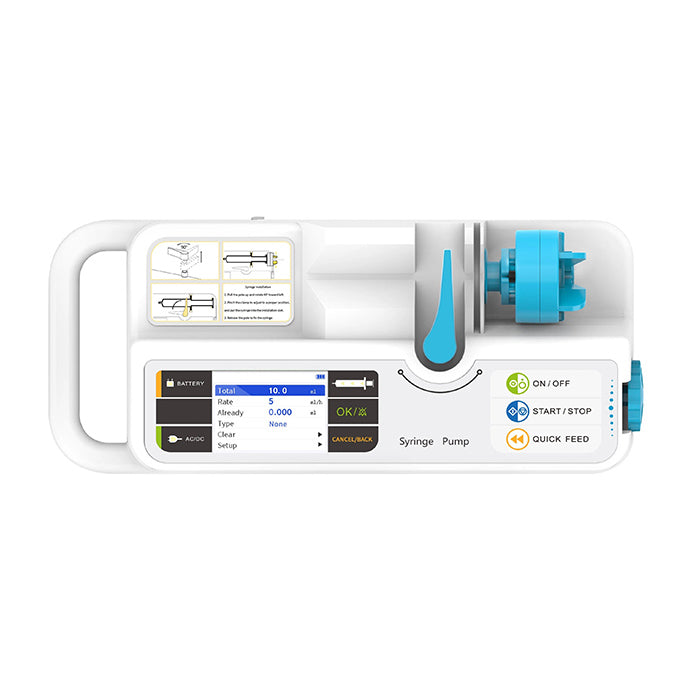

• 2.8-Inch TFT LCD Display: Shows real-time parameters including accumulated volume, remaining infusion time and operating status.
• Microprocessor-Controlled Infusion: Supports precise and consistent syringe-based medication and fluid administration.
• Multiple Syringe Sizes: Compatible with standard 10 mL, 20 mL, 30 mL and 50 mL syringes.
• Multi-Brand Syringe Support: Designed to recognise compatible syringes from multiple brands.
• Injection Reminder: Provides an alert to clinical staff when attention is required during infusion.
• Audible & Visual Alarms: Uses sound, visual indicators and display messages to highlight selected operating or safety conditions.
• Adjustable Occlusion Threshold: Supports High, Medium and Low pressure levels for infusion-pressure monitoring.
• Memory Retention: Saves infusion parameters even after the pump is switched off.
• Purge Function: Supports rapid priming or purge operation when required according to clinical protocol.
• Password Protection: Helps prevent unauthorised or accidental changes to infusion settings and syringe type.
• Dual Power Support: Operates through AC mains power with built-in battery support for uninterrupted clinical use.

Safety & Monitoring Functions

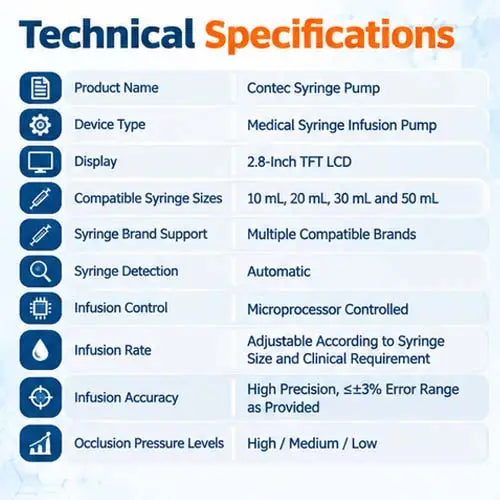

Technical Specifications

Benefits

• Supports precise and consistent syringe-based medication administration.
• Automatic syringe detection helps reduce incorrect syringe selection during setup.
• Real-time TFT display makes important infusion information easy to monitor.
• Multiple alarm formats help clinical staff respond promptly to selected safety conditions.
• Adjustable occlusion levels provide flexibility for pressure monitoring.
• Memory retention helps restore previously programmed parameters after power-off.
• Password protection can reduce accidental changes to critical infusion settings.
• Built-in battery support helps maintain infusion during temporary power interruptions.
• Compact 1.7 kg design supports convenient placement and handling.

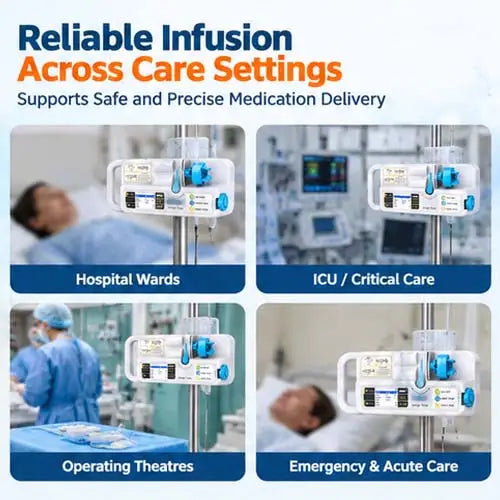

Suitable For

• Hospitals
• ICUs
• Operation theatres
• Emergency departments
• Critical care units
• High-dependency units
• Infusion therapy departments
• Clinical procedure rooms

How to Use

1. Place the syringe pump securely on a stable clinical surface or approved mounting arrangement.
2. Check the display, battery condition, syringe holder and pump mechanism before use.
3. Select a compatible 10 mL, 20 mL, 30 mL or 50 mL syringe according to the prescribed infusion.
4. Install the syringe correctly and confirm that the pump recognises the syringe specification.
5. Enter the prescribed infusion parameters according to the medical order.
6. Select the appropriate occlusion threshold according to institutional protocol.
7. Verify syringe size, medication concentration and programmed infusion settings before starting administration.
8. Start the infusion and monitor the patient, display and alarm status throughout therapy.
9. Use the purge function only according to the manufacturer's instructions and clinical procedure.
10. Respond promptly to any audible, visual or text alert before continuing infusion.

Why Choose This Contec Syringe Pump?

The Contec Syringe Pump combines automatic syringe recognition, microprocessor-controlled infusion and real-time monitoring in a compact clinical device. Its compatibility with common syringe sizes from 10 mL to 50 mL makes it suitable for a variety of syringe-based infusion requirements.

The 2.8-inch TFT LCD, adjustable occlusion levels, audible and visual alarms, purge function, memory retention and password protection add important usability and safety features. These functions make the pump suitable for demanding hospital environments where accurate administration and continuous monitoring are important.

Why Choose Medansh?

Medansh offers syringe pumps, infusion pumps, patient monitoring equipment and other critical-care products for hospitals, ICUs, operation theatres and institutional healthcare buyers. Buyers can explore suitable infusion and patient-care equipment on Medansh.in according to clinical requirements, facility setup and budget.

Important Note: This syringe pump is intended for professional medical use by trained healthcare personnel. Syringe size, medication concentration, infusion rate, occlusion threshold and other programmed settings must be verified against the medical order and institutional protocol before administration. Use the purge function and password-protection features according to the manufacturer's instructions.

Frequently Asked Questions

What syringe sizes are compatible with the Contec Syringe Pump?
The supplied specifications list compatibility with standard 10 mL, 20 mL, 30 mL and 50 mL syringes.

Does the pump automatically detect the syringe?
Yes. Automatic syringe detection is listed as one of the key features.

What display does the pump use?
It uses a 2.8-inch TFT LCD display with real-time monitoring.

What is the stated infusion accuracy?
The supplied information lists a high-precision delivery error range of ≤±3%.

Can the occlusion pressure be adjusted?
Yes. High, Medium and Low occlusion threshold levels are available.

Does it provide audible and visual alarms?
Yes. The alarm system includes audible alarms, visual alarms and text alerts on the display.

Does it retain settings after power-off?
Yes. The supplied product details state that infusion parameters are saved after the device is switched off.

Does the pump have password protection?
Yes. Password protection is provided to help prevent unauthorised or accidental changes to infusion settings.

What are the approximate dimensions and weight?
The supplied specifications list approximately 30.5 × 13.2 × 11.4 cm and a weight of about 1.7 kg.

Where can this syringe pump be used?
It is suitable for hospitals, ICUs, operation theatres, emergency departments, critical-care units and other professional infusion environments.
