Contec CMS-60C Handheld Pulse Oximeter

CMS60C Pulse Oximeter – Advanced Monitoring for Accurate SpO2 & Pulse Rate Measurement

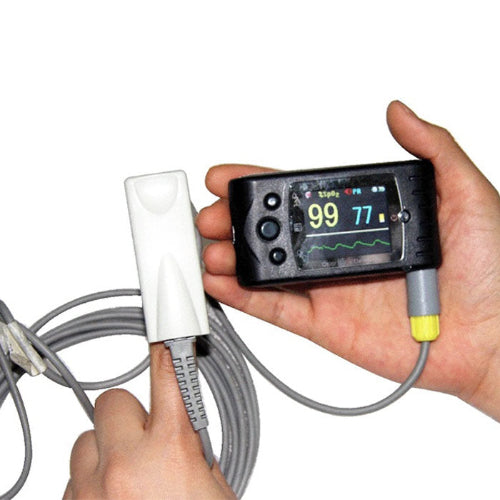

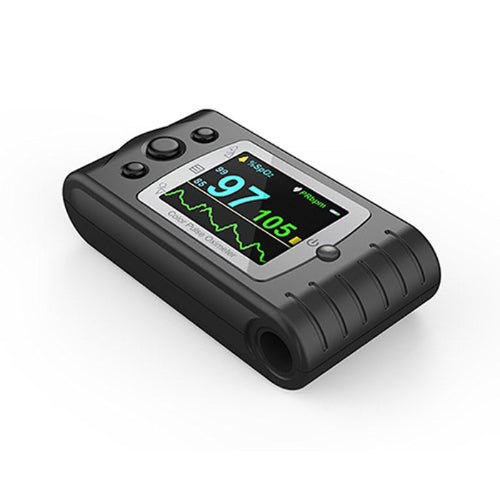

The CMS60C Pulse Oximeter is a high-precision oxygen saturation and pulse rate monitoring device, designed using Photoelectric Oxyhemoglobin Inspection Technology combined with Capacity Pulse Scanning & Recording Technology. It measures SpO2 (oxygen saturation) and pulse rate through the finger, making it suitable for use in hospitals, clinics, home healthcare, oxygen bars, and fitness monitoring. It is ideal for adults, children, and newborns, offering real-time data transmission and storage capability for up to 24 hours.

Key Specifications:

• SpO2 Measurement Range: 0% – 100% (Resolution: 1%)
• Accuracy:
  • 70% – 100%: ±2%
  • Below 70%: Unspecified
• Pulse Rate Measurement Range: 30 bpm – 250 bpm
• Accuracy: ±2 bpm or ±2% (whichever is greater)
• Display:
  • 1.77-inch TFT color screen (128 x 160 resolution)
  • Dual direction display with adjustable brightness levels
• Power Supply:
  • 3.7V Rechargeable Lithium Battery (lasts up to 26 hours per charge)
  • Power Adapter included
• Battery Life: Up to 500 charge/discharge cycles
• Device Size: 87 mm (L) x 45 mm (W) x 22 mm (H)
• Weight: Approx. 75g (including battery)
• Warranty: 1-year limited manufacturer warranty

Features:

✅ Accurate SpO2 & Pulse Rate Monitoring: Provides real-time readings with high accuracy, even in low perfusion conditions.
✅ Multi-Parameter Display: Shows SpO2, Pulse Rate (PR), Bar Graph, and Pleth Waveform.
✅ Pulse Sound Indication: Audible beep for heartbeat detection.
✅ Visual & Audible Alarms: Alerts when SpO2 or pulse rate falls below preset levels.
✅ Data Storage & Transfer: Stores up to 24 hours of data with free PC software to upload and analyze records.
✅ Dual-Direction Display: Adjustable screen rotation and 3 brightness levels for comfortable viewing.
✅ Battery Status Indicator: On-screen battery level display prevents unexpected power loss.
✅ Low Power Consumption: 26-hour battery backup on a single charge.
✅ User-Friendly Operation: Simple menu settings and one-button measurement activation.
✅ Suitable for All Age Groups: Designed for adults, children, and newborns. Comes with an adult probe, and other SpO2 probes are available as optional accessories.
✅ Resistant to Surrounding Light: Accurate readings even under bright light conditions.
✅ Lightweight & Portable: Compact design makes it easy to carry and use anytime, anywhere.

Performance Highlights:

• Measurement Performance in Weak Perfusion:
  • Accurate readings even when pulse-filling ratio is as low as 0.4%.
  • SpO2 error: ±4%, Pulse rate error: ±2 bpm or ±2% (whichever is greater).
• Light Interference Resistance:
  • Deviation of less than ±1% when measured under natural or artificial light compared to darkroom conditions.
• Safety:
  • Internally powered equipment, Type BF applied part ensuring patient safety.

Box Contents:

✔️ CMS60C Pulse Oximeter Device
✔️ Rechargeable Lithium Battery (3.7V)
✔️ Power Adapter
✔️ Data Cable for PC Connection
✔️ PC Software (for data upload and analysis)
✔️ Adult SpO2 Probe
✔️ User Manual

Optional: Additional SpO2 probes available upon request.

Frequently Asked Questions (FAQs):

Q: Can the oximeter be used during exercise?
A: It is recommended to measure before or after exercise for accurate readings, as movement during exercise can affect accuracy.

Q: Is the pulse oximeter suitable for children and newborns?
A: Yes, the device is suitable for adults, children, and neonatal use. It comes with an adult probe, and pediatric or neonatal probes can be purchased separately.

Q: How long does the battery last on a full charge?
A: The lithium battery lasts up to 26 hours on a single charge, with a lifespan of at least 500 charge cycles.

Q: Can the data be transferred to a computer?
A: Yes, real-time data transmission and 24-hour storage data upload are possible via the included software and data line.

Q: What alarms are included in the oximeter?
A: Visual and audible alarms are triggered when SpO2 or pulse rate levels fall below the preset limits, ensuring timely alerts for patient safety.
