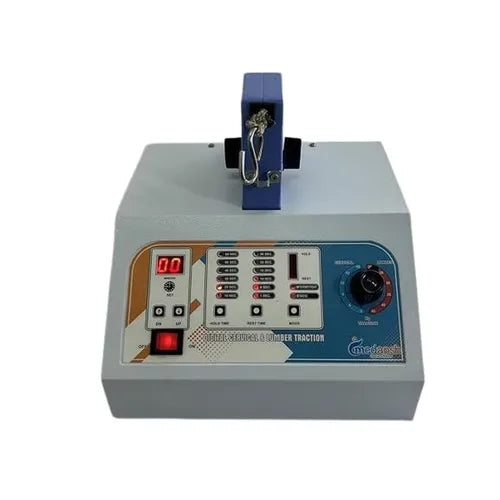

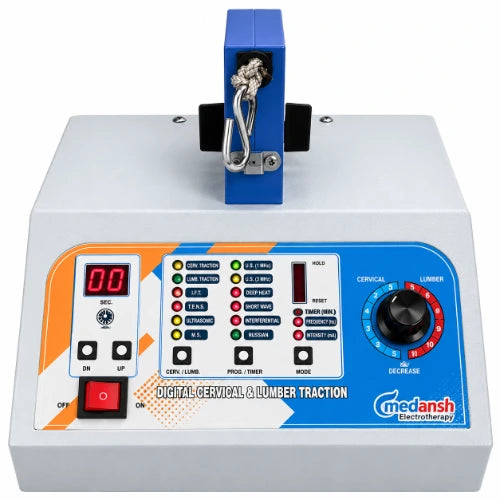

Cervical & Lumbar Traction Machine for Physiotherapy
Share this product
The Cervical & Lumbar Traction Machine for Physiotherapy is designed for controlled traction therapy in physiotherapy clinics, hospitals, rehabilitation centres and orthopaedic treatment setups. It supports both cervical and lumbar traction applications with adjustable traction force, static and intermittent operating modes, and programmable hold and release timings.
The machine uses solid-state circuitry and includes a digital treatment timer for convenient session control. Traction force can be adjusted from 5 kg to 45 kg, with traction doublers allowing force up to 90 kg where clinically appropriate.
For additional safety during treatment, the unit includes a patient safety switch and an audiovisual alarm system. The machine is intended for use by trained physiotherapists or healthcare professionals who can select traction force, timing and treatment mode according to patient assessment and clinical requirements.

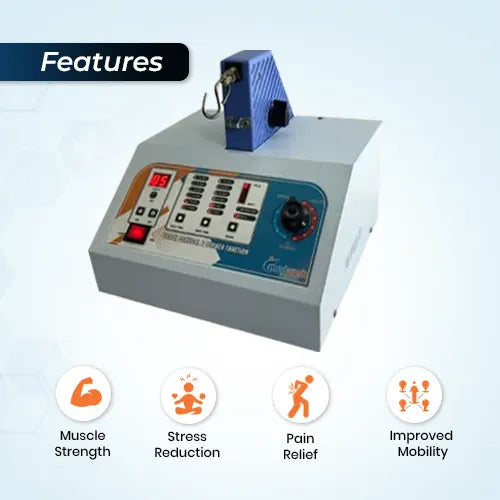

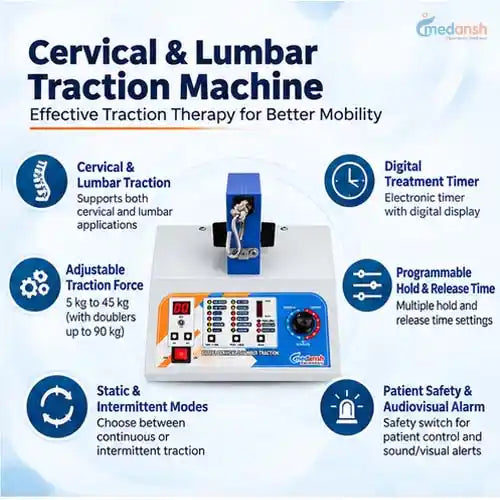

Key Features
- Cervical & Lumbar Traction: Designed to support both cervical and lumbar traction therapy applications.
- Adjustable Traction Force: Force can be adjusted from 5 kg to 45 kg, with doublers allowing up to 90 kg.
- Static & Intermittent Modes: Allows selection between continuous static traction and intermittent traction therapy.
- Digital Treatment Timer: Electronic timer with digital display helps manage treatment duration accurately.
- Programmable Hold Time: Multiple hold-time settings support different therapist-directed traction protocols.
- Programmable Release Time: Multiple release-time options allow controlled intermittent traction cycles.
- Patient Safety Switch: Allows the patient to signal or interrupt treatment when required.
- Audiovisual Alarm: Provides both sound and visual alerts during selected operating conditions.
- Solid-State Circuitry: Designed for stable operation and routine professional physiotherapy use.
- Low Power Consumption: Operates with a listed power consumption of approximately 85 watts.
Traction Modes
| Mode | Application |
|---|---|
| Static Traction | Provides continuous traction force according to the therapist-selected setting. |
| Intermittent Traction | Alternates between programmed hold and release periods during treatment. |
| Cervical Traction | Used with appropriate cervical traction accessories according to professional assessment. |
| Lumbar Traction | Used with suitable pelvic support and traction setup for therapist-directed lumbar applications. |

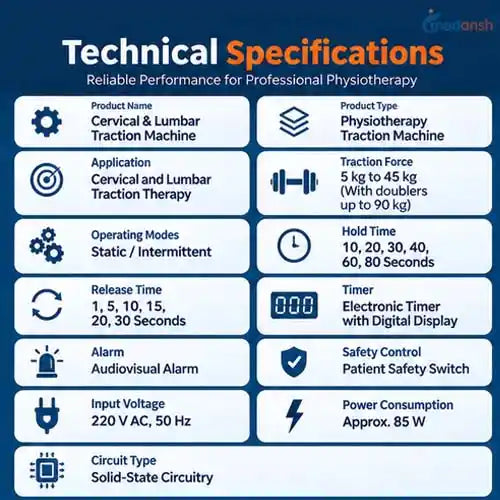

Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Cervical & Lumbar Traction Machine for Physiotherapy |
| Product Type | Physiotherapy Traction Machine |
| Application | Cervical and Lumbar Traction Therapy |
| Traction Force | 5 kg to 45 kg |
| Maximum Force with Doublers | Up to 90 kg |
| Operating Modes | Static / Intermittent |
| Hold Time | 10, 20, 30, 40, 60, 80 Seconds |
| Release Time | 1, 5, 10, 15, 20, 30 Seconds |
| Timer | Electronic Timer with Digital Display |
| Alarm | Audiovisual Alarm |
| Safety Control | Patient Safety Switch |
| Input Voltage | 220 V AC, 50 Hz |
| Power Consumption | Approx. 85 W |
| Circuit Type | Solid-State Circuitry |
| Primary Use | Professional Physiotherapy and Rehabilitation |
Benefits
- Supports both cervical and lumbar traction therapy from one machine.
- Adjustable traction force allows therapists to customise treatment according to patient requirements.
- Static and intermittent modes provide flexibility for different traction protocols.
- Programmable hold and release timings support structured therapy sessions.
- Patient safety switch adds an important safety feature during treatment.
- Digital timer improves visibility and control of session duration.
- Low power consumption supports practical daily clinical use.
- Suitable for physiotherapy clinics, hospitals and rehabilitation centres.
Suitable For
- Physiotherapy clinics
- Hospitals
- Rehabilitation centres
- Orthopaedic clinics
- Spine rehabilitation centres
- Sports rehabilitation facilities
- Pain management centres
- Physiotherapy departments
How to Use
- Place the traction machine on a stable and dry treatment surface.
- Select the appropriate cervical or lumbar traction setup according to the patient's assessment.
- Position the cervical collar or pelvic belt correctly before beginning treatment.
- Connect the required traction accessories and verify all attachment points.
- Select static or intermittent traction mode according to the therapist's treatment plan.
- Set the required traction force, hold time, release time and treatment duration.
- Provide the patient with the safety switch before starting traction.
- Start treatment and monitor patient comfort continuously.
- Stop treatment immediately if the patient reports pain, dizziness, numbness or unusual discomfort.
- After completion, reduce traction force gradually before removing the support accessories.
Why Choose This Cervical & Lumbar Traction Machine?
The Cervical & Lumbar Traction Machine for Physiotherapy combines adjustable traction force, programmable timing and static or intermittent operating modes in one professional physiotherapy system. The wide traction range provides flexibility for therapist-directed cervical and lumbar applications.
Its patient safety switch, audiovisual alarm and digital treatment timer provide practical operational support during clinical sessions. With traction doublers extending the available force up to 90 kg, the unit can be configured according to different professional treatment requirements when clinically appropriate.
Why Choose Medansh?
Medansh offers traction machines, electrotherapy equipment, rehabilitation products and professional physiotherapy solutions for clinics, hospitals and rehabilitation centres. Buyers can explore suitable physiotherapy equipment on Medansh.in according to treatment requirements, clinic setup and budget.
Important Note: This traction machine is intended for professional physiotherapy use only. Traction force, patient positioning, treatment mode, hold/release timing and session duration should be determined by a qualified physiotherapist or healthcare professional after appropriate patient assessment. Traction therapy may not be suitable for every patient or spinal condition.
Frequently Asked Questions
What is this Cervical & Lumbar Traction Machine used for?
It is designed for professional cervical and lumbar traction therapy in physiotherapy and rehabilitation settings.
What is the traction force range?
The standard adjustable traction force is 5 kg to 45 kg.
Can the traction force be increased beyond 45 kg?
Yes. The supplied specifications state that traction doublers can increase the force up to approximately 90 kg.
Does the machine support intermittent traction?
Yes. Both static and intermittent traction modes are available.
What hold-time settings are available?
The supplied settings are 10, 20, 30, 40, 60 and 80 seconds.
What release-time settings are available?
The listed settings are 1, 5, 10, 15, 20 and 30 seconds.
Does it include a patient safety switch?
Yes. A patient safety switch is included for use during treatment.
What power supply does the machine require?
The supplied specification lists 220 V AC at 50 Hz.
What is the power consumption?
The listed power consumption is approximately 85 watts.
Where can this traction machine be used?
It is suitable for physiotherapy clinics, hospitals, rehabilitation centres, orthopaedic clinics and professional spine-care setups.
