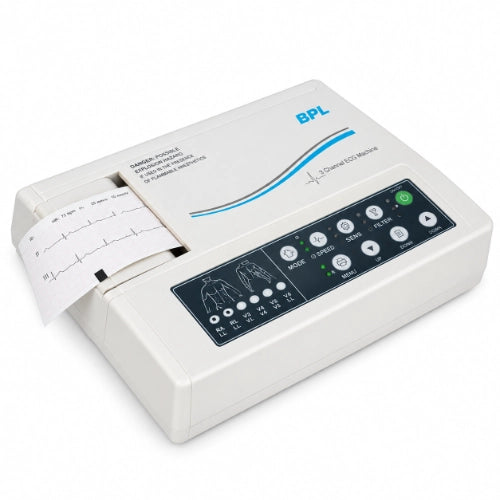

BPL 6108T Single Channel ECG Machine
In stock
Share this product
The BPL 6108T Single Channel ECG Machine is a compact and portable electrocardiograph designed for routine cardiac recording in hospitals, clinics, diagnostic centres and medical practices. Its single-channel format and automatic operating mode make it suitable for basic ECG acquisition where a straightforward and space-efficient machine is required.
The unit supports automatic ECG operation and includes a baseline filter to help reduce waveform drift during recording. With a stated common mode rejection ratio of greater than 60 dB, the machine is designed to support cleaner signal acquisition in routine clinical environments.
Its portable design makes it practical for use in consultation rooms, wards and smaller diagnostic setups where easy movement and compact placement are important. The machine can be used with the required patient cable and power connection for standard ECG recording workflows.
Key Features
- Single Channel ECG Recording: Designed for basic electrocardiographic recording in routine clinical settings.
- Portable Design: Compact construction supports easy movement and placement across hospital and clinic areas.
- Automatic Operating Mode: Supports automatic ECG acquisition for convenient routine use.
- Baseline Filter: Helps reduce baseline drift and improve waveform presentation during recording.
- High CMRR: Common mode rejection ratio greater than 60 dB supports improved resistance to electrical interference.
- Simple Clinical Workflow: Suitable for routine ECG recording in OPDs, clinics and diagnostic areas.
- Compact Footprint: Space-efficient format is suitable for smaller examination and diagnostic rooms.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | BPL 6108T Single Channel ECG Machine |
| Product Type | Single Channel ECG Machine |
| Number of Channels | 1 Channel |
| Machine Type | Portable |
| Operating Mode | Automatic |
| Sensitivity | 5 |
| Filter Type | Baseline Filter |
| CMRR | >60 dB |
| Primary Application | Routine ECG Recording |
Benefits
- Supports routine electrocardiographic recording in a compact format.
- Single-channel design is suitable for basic ECG requirements.
- Automatic operation helps simplify the recording workflow.
- Baseline filtering supports clearer ECG waveform presentation.
- Portable construction makes the unit easier to move between clinical areas.
- High CMRR helps reduce the effect of common electrical interference.
- Suitable for hospitals, clinics and diagnostic centres with routine ECG needs.
Suitable For
- Hospitals
- Clinics
- Diagnostic centres
- OPD departments
- General physician clinics
- Cardiac screening rooms
- Hospital wards
How to Use
- Place the ECG machine on a stable and dry clinical surface.
- Connect the patient cable correctly to the machine and prepare the patient according to ECG procedure protocol.
- Position the electrodes correctly according to the required ECG lead placement.
- Switch on the machine and select the appropriate automatic operating mode.
- Check the waveform quality and ensure that excessive movement or electrical interference is minimised.
- Begin the ECG recording according to the clinical workflow.
- Review the recorded tracing and repeat the acquisition if required because of artefact or poor lead contact.
- After use, disconnect the patient safely and clean the patient-contact components according to institutional protocol.
Why Choose This BPL 6108T ECG Machine?
The BPL 6108T Single Channel ECG Machine is a practical option for healthcare facilities that need a compact ECG recorder for routine cardiac assessment. Its automatic operation, baseline filtering and portable design help support straightforward ECG acquisition in general clinical environments.
The single-channel format also makes it suitable for clinics, OPDs and diagnostic rooms where a basic and easy-to-position ECG machine is preferred. Its compact footprint and simple controls support regular day-to-day use by trained healthcare professionals.
Why Choose Medansh?
Medansh offers ECG machines, patient monitoring equipment, diagnostic devices and professional healthcare products for hospitals, clinics and diagnostic centres. Buyers can explore suitable cardiac diagnostic equipment on Medansh.in according to clinical requirements, facility setup and budget.
Important Note: This ECG machine is intended for professional diagnostic use by trained healthcare personnel. ECG lead placement, signal interpretation and clinical decisions should be performed according to applicable medical protocols. Confirm the exact sensitivity scale, paper specification and final device configuration before purchase if these parameters are important for your setup.
Frequently Asked Questions
How many channels does the BPL 6108T have?
It is a single-channel ECG machine.
Is the machine portable?
Yes. The supplied specifications identify it as a portable ECG machine.
What operating mode does it use?
The listed operating mode is automatic.
What type of filter is provided?
The supplied specifications list a baseline filter.
What is the CMRR?
The stated common mode rejection ratio is greater than 60 dB.
Where can this ECG machine be used?
It is suitable for hospitals, clinics, OPDs, diagnostic centres and routine cardiac screening environments.
