Automatic PLC Rectangular Autoclave Machine SS 304
In stock
Share this product
Automatic PLC Rectangular Autoclave Machine SS 304

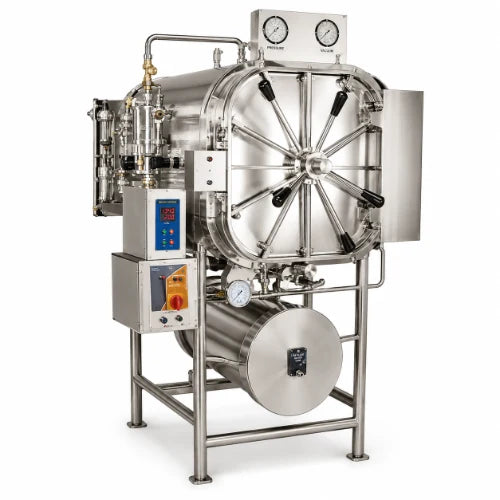

The Automatic PLC Rectangular Autoclave Machine SS 304 is a professional steam sterilization system designed for hospitals, CSSD areas, laboratories, pharmaceutical facilities, diagnostic centres and research departments. It supports sterilization of compatible surgical instruments, laboratory glassware, vessels, filters, liquids, machine parts and reusable medical equipment.
This autoclave machine uses automatic PLC control to support consistent sterilization cycles and better workflow handling. In addition, its triple-walled rectangular chamber, SS 304 stainless steel construction and self-locking safety door make it suitable for demanding sterilization environments.
Key Features
- Automatic PLC rectangular autoclave machine for professional steam sterilization use.
- Triple-walled chamber design supports stable heat retention and bulk sterilization handling.
- SS 304 stainless steel construction for pressure vessel, boiler, jacket, lid and chamber parts.
- Positive self-locking safety door helps prevent opening while the chamber is under pressure.
- Radial locking lid supports secure chamber sealing during sterilization cycles.
- Automatic pressure control, pressure monitoring and low water cut-off support safer operation.
- Moisture trap and vacuum breaker help manage chamber discharge and pressure balance.
- Available in single-door and double-door options for different sterilization room workflows.
Available Variants
| Variant | Size | Capacity | Door Type |
|---|---|---|---|
| Variant 1 | 24 x 24 x 48 Inch | 430 Ltr | Single Door |
| Variant 2 | 24 x 24 x 48 Inch | 430 Ltr | Double Door |
| Variant 3 | 24 x 24 x 60 Inch | 510 Ltr | Single Door |
| Variant 4 | 24 x 24 x 60 Inch | 510 Ltr | Double Door |
| Variant 5 | 36 x 36 x 60 Inch | 925 Ltr | Single Door |
| Variant 6 | 36 x 36 x 60 Inch | 925 Ltr | Double Door |
Technical Specifications
| Product Type | Horizontal Rectangular Autoclave / Steam Sterilizer |
|---|---|
| Operation | Automatic PLC |
| Chamber Type | Triple-Walled Rectangular Chamber |
| Inner Dimensions | 18 x 18 x 36 Inch |
| Reference Capacity | 175 Ltr; larger capacities available as per selected variant |
| Sterilizing Pressure | 1.2 kgf/cm² / 15 PSI at 121°C |
| Operating Pressure | 15 PSI to 20 PSI |
| Pressure Gauge | 0-2.1 kgf/cm² / 30 PSI |
| Display | Dial Thermometer standard with the unit |
| Pressure Vessel | Stainless Steel SS 304 |
| Boiler | Stainless Steel SS 304 |
| Jacket, Lid & External Wall | Stainless Steel SS 304 |
| Stand and Support Ring | Mild Steel, Powder Coated |
| Gasket | Silicon Rubber / Neoprene Rubber |
| Power Supply | 220/230V AC, 50/60Hz or 430/440V, 3 Phase Supply |
| Recommended Electrical Supply | 440V, 3 Phase, 50Hz AC Supply |
Benefits of Automatic PLC Rectangular Autoclave Machine
This automatic PLC autoclave machine helps facilities manage controlled steam sterilization for larger compatible loads. As a result, it is useful for departments that need repeatable cycles, reliable safety support and better chamber space utilization.
- Supports sterilization workflow for hospitals, laboratories, pharma units and CSSD areas.
- Automatic PLC operation helps improve cycle control and process consistency.
- Triple-walled structure helps reduce thermal loss and supports stable chamber conditions.
- SS 304 stainless steel construction supports durability and corrosion resistance.
- Self-locking safety door helps prevent accidental opening under pressure.
- Moisture trap and vacuum breaker support chamber discharge and pressure management.
- Single-door and double-door options support different workflow layouts.
- Multiple capacity options support higher sterilization workload requirements.
Who Should Buy This?
The Automatic PLC Rectangular Autoclave Machine SS 304 is suitable for professional facilities that need a high-capacity steam sterilizer with automated control and strong safety features. Moreover, it is useful where clean-side workflow, larger load handling and process control are important.
- Hospitals and CSSD departments for controlled sterilization workflow.
- Operation theatres for compatible surgical instrument processing support.
- Pharmaceutical facilities for compatible vessels, filters, liquids and process items.
- Diagnostic laboratories for routine sterilization room use.
- Microbiology and research labs for compatible glassware and lab tools.
- Medical colleges for institutional sterilization and training setups.
- Industrial sterilization areas for approved steam-compatible items.
Common Applications
- Sterilization of compatible surgical instruments
- Laboratory glassware sterilization
- Vessels, filters and liquid sterilization where compatible
- Machine parts sterilization where steam-safe
- Hospital CSSD and sterilization room workflow
- Operation theatre instrument processing support
- Pharmaceutical and laboratory sterilization support
- Research and microbiology lab use
How to Use Safely
- Install the autoclave in a suitable sterilization area with proper electrical supply and ventilation.
- Inspect the chamber, door, gasket, pressure gauge, water level indicator and safety valves before use.
- Load compatible items in approved packs or containers without blocking steam circulation.
- Close the door and ensure the self-locking safety mechanism is properly engaged.
- Select the appropriate PLC cycle settings according to load type and facility protocol.
- Allow the unit to complete sterilization, exhaust, drying if selected and cooling phases.
- Open the chamber only after pressure is safely released and the cycle is complete.
- Unload processed items carefully and clean the chamber as per user manual instructions.
Why Choose This Automatic PLC Rectangular Autoclave?
This automatic PLC rectangular autoclave is designed for facilities that need controlled operation, durable construction and dependable steam sterilization performance. In addition, the triple-walled rectangular chamber and SS 304 build make it suitable for demanding healthcare, pharmaceutical, diagnostic and research settings.
- Automatic PLC control supports repeatable sterilization cycles.
- Rectangular chamber supports better use of internal loading space.
- SS 304 pressure vessel, boiler, lid, jacket and chamber parts support durability.
- Self-locking safety door helps improve operational safety.
- Good choice for hospitals, CSSD areas, pharma units, labs and institutional buyers.
FAQs
What is an autoclave machine used for?
An autoclave machine is used for steam sterilization of compatible surgical instruments, laboratory glassware, vessels, filters, liquids, machine parts and reusable medical items.
What is the benefit of automatic PLC control?
Automatic PLC control helps manage sterilization cycle functions more systematically. Therefore, it supports process consistency, user convenience and controlled workflow when operated by trained users.
What is the benefit of a rectangular chamber?
A rectangular chamber helps improve internal loading space and chamber utilization. As a result, it is useful for larger loads in hospitals, laboratories and pharmaceutical facilities.
What capacities are available?
The supplied specifications mention a 175 Ltr reference capacity. Additional variants include 430 Ltr, 510 Ltr and 925 Ltr in single-door and double-door configurations.
What material is used in this autoclave?
The pressure vessel, boiler, jacket, lid, inner chamber and external wall are listed as SS 304 stainless steel, supporting durability and professional sterilization use.
Who should operate this autoclave machine?
This autoclave machine should be operated by trained sterilization staff, laboratory personnel, pharmaceutical operators, biomedical technicians or authorized users because it works with steam, pressure, heat and electrical systems.
