Automatic External Defibrillator (AED 7000)
In stock
Share this product

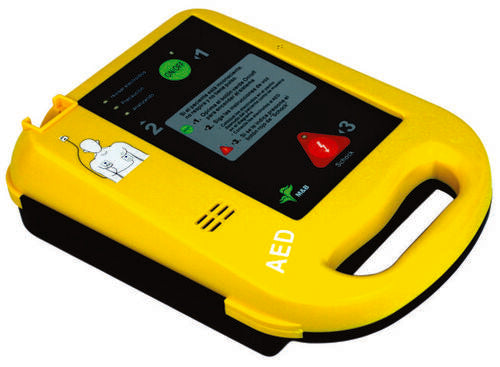

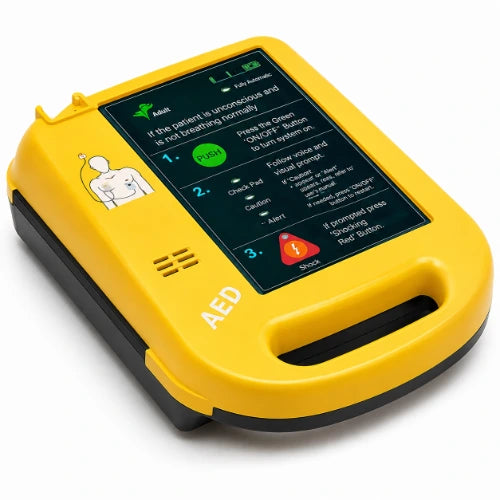

The Automatic External Defibrillator AED 7000 is a portable emergency defibrillation device designed to support rapid response during suspected sudden cardiac arrest. It is suitable for hospitals, clinics, ambulances, emergency departments, corporate offices, educational institutions, public facilities and other locations where fast access to an AED may be required.
This AED machine uses a simple three-step defibrillation process supported by clear voice and visual prompts. Its two-button operation helps trained responders follow the rescue sequence with greater confidence during high-pressure emergency situations.
The AED 7000 delivers biphasic truncated exponential energy with an energy sequence of 150 J, 150 J and 200 J. It also includes automatic self-testing, battery-condition monitoring and lock-out protection designed to prevent unintended shock delivery. According to the product brochure, the unit provides 22 audible prompts, LED visual guidance and automatic daily and monthly system checks.
Key Features
- Three-Step Defibrillation Process: Simplifies emergency operation with a guided rescue sequence.
- Two-Button Operation: Uses dedicated On/Off and Shock controls for straightforward handling.
- Voice and Visual Prompts: Provides 22 audible prompts along with LED guidance for the operator.
- Biphasic Energy Output: Delivers biphasic truncated exponential waveform therapy.
- 150–200 Joule Energy Sequence: Uses programmed energy levels of 150 J, 150 J and 200 J.
- Automatic Rhythm Analysis: Analyses the patient's rhythm and determines shock readiness.
- Lock-Out Protection: Helps prevent inadvertent defibrillation.
- Automatic Self-Test: Performs daily battery checks and monthly whole-system tests.
- Portable Design: Compact structure with integrated handle supports emergency transport.
- Non-Rechargeable Battery: Designed for extended standby readiness and emergency use.

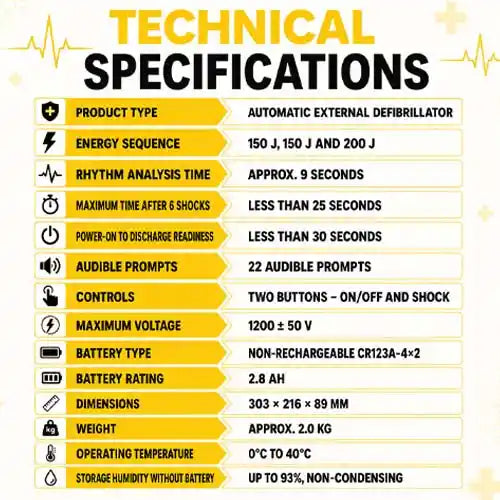

Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Automatic External Defibrillator |
| Model | AED 7000 |
| Waveform Output | Biphasic Truncated Exponential |
| Energy Sequence | 150 J, 150 J and 200 J |
| Charging Time | Approx. 8 Seconds to 150 J and 10 Seconds to 200 J with New Battery |
| Rhythm Analysis Time | Approx. 9 Seconds |
| Maximum Time from Rhythm Analysis to Discharge Readiness | Less than 20 Seconds with New Battery |
| Maximum Time After 6 Shocks | Less than 25 Seconds |
| Power-On to Discharge Readiness | Less than 30 Seconds |
| Audible Prompts | 22 Audible Prompts |
| Visual Prompts | LED Prompts with Automatic Self-Test |
| Controls | Two Buttons – On/Off and Shock |
| Output Energy Accuracy | ±15% Across Patient Impedance from 25 Ω to 175 Ω |
| Maximum Voltage | 1200 ± 50 V |
| Output Disabled Outside Impedance Limits | 20 Ω to 200 Ω |
| Battery Type | Non-Rechargeable CR123A-4×2 |
| Battery Rating | 2.8 Ah |
| Battery Capacity | Up to 100 Discharges at 200 J or 120 Discharges at 150 J |
| Battery Standby Life | Up to 5 Years After Installation at 25°C ±15°C |
| Dimensions | 303 × 216 × 89 mm |
| Weight | Approx. 2.0 kg |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 30% to 95% Relative Humidity, Non-Condensing |
| Storage Temperature Without Battery | -20°C to 55°C |
| Storage Humidity Without Battery | Up to 93%, Non-Condensing |
Benefits
- Supports rapid emergency response during suspected sudden cardiac arrest.
- Simple two-button design helps reduce operational complexity.
- Voice and LED prompts guide the responder through the rescue sequence.
- Automatic rhythm analysis supports appropriate shock decision workflow.
- Biphasic waveform technology provides controlled defibrillation energy delivery.
- Automatic self-testing helps maintain device readiness.
- Lock-out protection supports safer emergency operation.
- Compact 2 kg construction makes the device easier to transport.
- Long standby battery life supports emergency preparedness.
Suitable For
- Hospitals and emergency departments
- Ambulances and emergency-response vehicles
- Clinics and diagnostic centres
- Corporate offices and industrial facilities
- Schools, colleges and universities
- Airports, railway stations and public buildings
- Sports centres and fitness facilities
- Hotels, malls and community spaces
Applications
- Emergency response for suspected sudden cardiac arrest
- Basic life-support and AED programs
- Hospital emergency preparedness
- Ambulance and pre-hospital care
- Workplace emergency-response systems
- Public-access defibrillation programs
- AED demonstrations and responder training
Why Choose the AED 7000?
The AED 7000 Automatic External Defibrillator combines a guided three-step rescue process, two-button operation, automatic rhythm analysis and biphasic energy delivery in a compact portable unit. Its extensive audible and visual prompts help trained responders follow the emergency sequence more efficiently.
The automatic daily battery test, monthly system test, long standby battery life and lock-out protection make it a practical option for hospitals, workplaces, ambulances and public-access emergency preparedness programs.
Why Buy from Medansh?
Medansh supplies emergency-care equipment, cardiac devices and hospital solutions for healthcare institutions, organisations and professional buyers across India. The AED 7000 available through Medansh.in is suitable for facilities seeking a portable and guided automated external defibrillator for emergency preparedness.
Buying Guidance
Before purchasing, confirm the required number of AED units, installation location, electrode-pad availability, battery replacement schedule, staff training requirements and after-sales support. Public and institutional users should also maintain a documented inspection and emergency-response plan.
Emergency Use Note: This AED should be used according to approved CPR and AED protocols by trained or appropriately instructed responders. Always contact emergency medical services immediately during suspected cardiac arrest and follow the device prompts carefully.
Frequently Asked Questions
1. What is the AED 7000 used for?
It is used to analyse cardiac rhythm and deliver a defibrillation shock when advised during suspected sudden cardiac arrest.
2. Is the AED 7000 easy to operate?
Yes. It uses a three-step process, two-button control and extensive voice and LED prompts.
3. What energy levels does it deliver?
The programmed sequence is 150 J, 150 J and 200 J.
4. Does the device analyse the heart rhythm automatically?
Yes. The AED automatically analyses the rhythm and determines whether shock delivery is advised.
5. Does it perform automatic self-tests?
Yes. It performs daily battery-condition testing and monthly whole-system testing.
6. What type of battery does it use?
It uses a non-rechargeable CR123A-4×2 battery rated at 2.8 Ah.
7. How many shocks can the battery support?
The brochure specifies up to 100 discharges at 200 J or 120 discharges at 150 J.
8. What is the weight of the AED?
The AED weighs approximately 2.0 kg.
