AIRLOG 3 Portable ventilator

The AIRLOG 3 Portable Ventilator is a compact respiratory-support device designed for emergency rescue, ambulance transport, inter-hospital transfer and controlled patient transportation. Its lightweight construction and straightforward operating controls make it suitable for situations where rapid deployment and dependable ventilation support are required.

This portable transport ventilator supports IPPV, Assist and Manual ventilation modes. It provides an adjustable tidal-volume range of 75–2000 ml, breathing rate from 5–40 BPM and minute-volume range from 3–20 LPM, allowing trained medical personnel to configure ventilation according to the patient’s clinical requirements.

The unit includes adjustable pressure limitation, PEEP control and a patient-trigger function. An alarm or warning is provided if the patient stops breathing, helping emergency and transport teams identify interruptions in spontaneous respiratory activity. Its IPX4 protection rating and approximately 10-hour battery operation support use during compatible mobile and emergency-care applications.

Key Features

• Portable Transport Design: Compact construction supports emergency rescue, ambulance and inter-hospital transportation.
• IPPV Ventilation Mode: Supports intermittent positive-pressure ventilation for compatible respiratory-care situations.
• Assist Mode: Supports patient-triggered assisted ventilation according to the selected settings.
• Manual Ventilation Mode: Allows trained operators to provide manually controlled breaths when clinically required.
• Wide Tidal-Volume Range: Adjustable from 75 ml to 2000 ml for different compatible patient and transport requirements.
• Adjustable Respiratory Rate: Supports a breathing-rate range of 5–40 breaths per minute.
• Minute-Volume Control: Provides an adjustable minute-volume range of 3–20 LPM.
• Pressure-Limit Adjustment: Adjustable pressure limit from 20–60 mbar.
• Adjustable PEEP: Supports a PEEP range of 5–20 mbar according to the supplied specification.
• Patient-Trigger Sensitivity: Trigger level specified at less than −2 mbar.
• Apnoea Warning: Provides an alarm or warning if the patient stops breathing.
• Long Battery Operation: Supports approximately 10 hours of battery working time.
• Lightweight Machine: Main unit weighs no more than approximately 1.3 kg, excluding tubing and other components.
• IPX4 Protection: Provides protection against water splashes during compatible transport and clinical use.

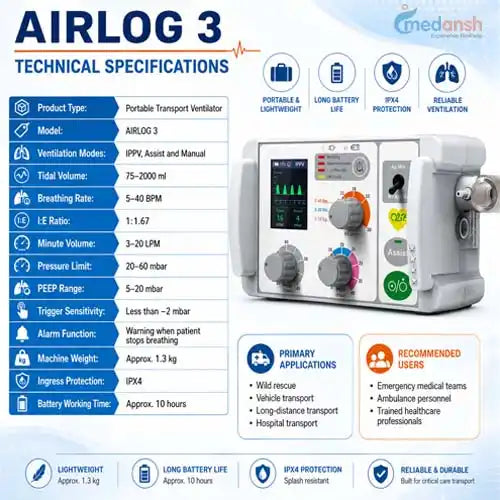

Technical Specifications

Standard Configuration

• Main ventilator unit
• Ventilation hose
• Patient valve
• Patient mask

Ventilation Modes

The AIRLOG 3 supports three core operating modes for transport and emergency-care applications:

• IPPV Mode: Provides intermittent positive-pressure ventilation according to the selected tidal volume and respiratory rate.
• Assist Mode: Allows the ventilator to respond to compatible patient-triggered inspiratory effort.
• Manual Mode: Enables trained healthcare professionals to initiate individual breaths when required.

Benefits

• Provides respiratory support during emergency and patient-transport situations.
• Compact design supports rapid deployment in ambulances and rescue vehicles.
• Multiple ventilation modes support different clinical transport requirements.
• Wide tidal-volume range provides flexible setting options.
• Adjustable pressure and PEEP controls support patient-specific ventilation planning.
• Apnoea warning helps alert operators when spontaneous breathing stops.
• Lightweight construction helps reduce transport burden on medical teams.
• Extended battery working time supports longer transfer routes.
• IPX4 protection supports compatible outdoor and mobile-care use.

Suitable For

• Ambulance services
• Emergency medical teams
• Hospital transport departments
• Intensive care patient transfers
• Inter-hospital transportation
• Disaster-response teams
• Wild and remote rescue operations
• Critical-care transport units
• Emergency departments
• Military and field medical services

Applications

• Ambulance patient ventilation
• Vehicle-based medical transport
• Long-distance patient transfer
• Inter-hospital critical-care transport
• Wild and remote rescue missions
• Disaster and emergency response
• Hospital-to-hospital transfer
• Temporary respiratory support during controlled transport

Why Choose the AIRLOG 3 Portable Ventilator?

The AIRLOG 3 Portable Ventilator is a practical choice for healthcare teams that require a lightweight, transport-ready ventilation system with straightforward controls. Its IPPV, Assist and Manual modes support different emergency and patient-transfer workflows.

The adjustable tidal volume, breathing rate, pressure limit and PEEP settings provide greater flexibility during supervised respiratory support. Its approximately 1.3 kg machine weight and 10-hour battery working time make it particularly suitable for ambulance, rescue and long-distance transport applications.

Medansh offers portable ventilators, emergency respiratory equipment and critical-care transport products for hospitals, ambulance services and professional healthcare buyers across India. The AIRLOG 3 Portable Ventilator can be purchased from Medansh.in after confirming the required ventilation settings, gas-source compatibility and transport application.

Buying Guidance

Before purchasing, confirm the required ventilation modes, patient category, tidal-volume range and intended transport duration. Buyers should also verify oxygen-supply requirements, connector compatibility, battery charging arrangement and availability of trained operators.

The device should be evaluated for compatibility with the facility’s breathing circuits, patient valves, masks and transport oxygen system. The exact standard configuration and any additional components should be confirmed before placing the order.

Healthcare facilities should maintain a preventive-maintenance schedule that includes battery testing, alarm verification, pressure testing, valve inspection and calibration according to the manufacturer’s instructions.

Clinical Safety Note: This ventilator must be operated only by trained medical professionals. Patient condition, airway security, oxygen supply, pressure settings and ventilation response must be monitored continuously. A manual resuscitation bag and backup oxygen source should remain immediately available during transport.

FAQs

1. What is the AIRLOG 3 used for?

It is used to provide controlled respiratory support during ambulance transport, rescue operations, inter-hospital transfer and other emergency-care situations.

2. What ventilation modes are available?

The ventilator supports IPPV, Assist and Manual modes.

3. What is the tidal-volume range?

The specified tidal-volume range is 75–2000 ml.

4. What breathing-rate range is supported?

The breathing rate can be adjusted from 5–40 breaths per minute.

5. What is the minute-volume range?

The specified minute-volume range is 3–20 LPM.

6. Does the ventilator support PEEP?

Yes, it supports an adjustable PEEP range of 5–20 mbar.

7. What is the adjustable pressure range?

The pressure limit can be adjusted from 20–60 mbar.

8. Does it provide an apnoea warning?

Yes, the supplied specification mentions an alarm or warning when the patient stops breathing.

9. What is the machine weight?

The main ventilator unit weighs no more than approximately 1.3 kg, excluding tubing and other components.

10. How long does the battery operate?

The specified battery working time is approximately 10 hours under applicable operating conditions.

11. Is the AIRLOG 3 suitable for ambulance use?

Yes, its lightweight and portable design makes it suitable for ambulance and vehicle-based patient transport.

12. Can it be used during long-distance transport?

Yes, it is designed for long-distance and hospital transport, subject to adequate oxygen supply, battery charge and continuous clinical monitoring.

13. Who should operate this ventilator?

It should be operated only by trained doctors, respiratory-care professionals, paramedics or authorised emergency medical personnel.

14. Where can the AIRLOG 3 Portable Ventilator be purchased?

The AIRLOG 3 Portable Ventilator can be purchased from Medansh.in for hospitals, ambulance services, emergency teams and critical-care transport requirements.
