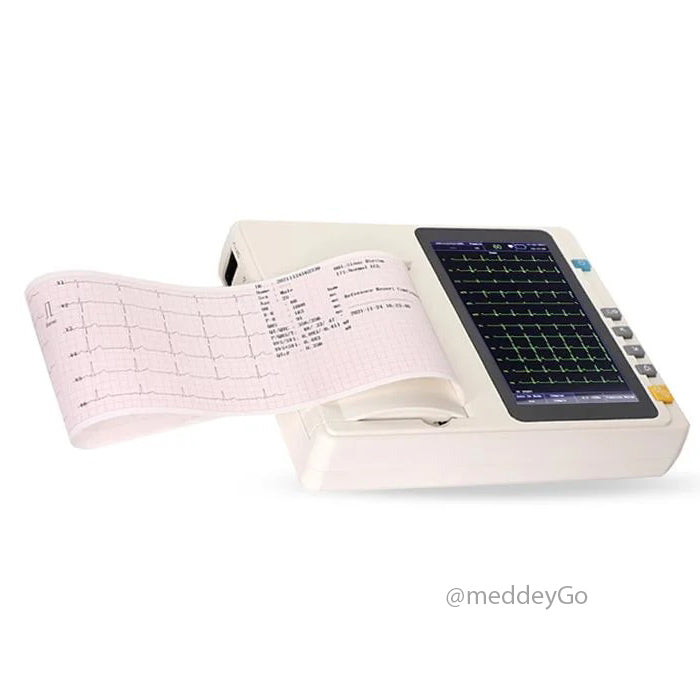

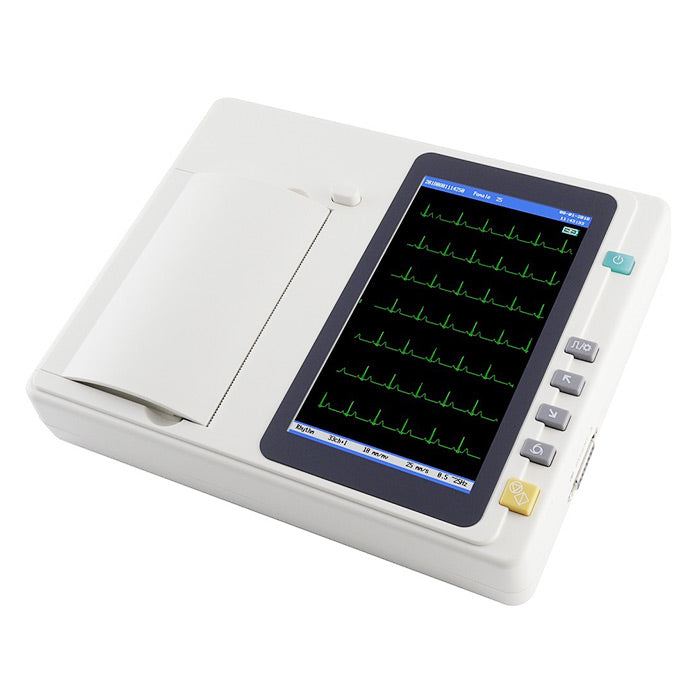

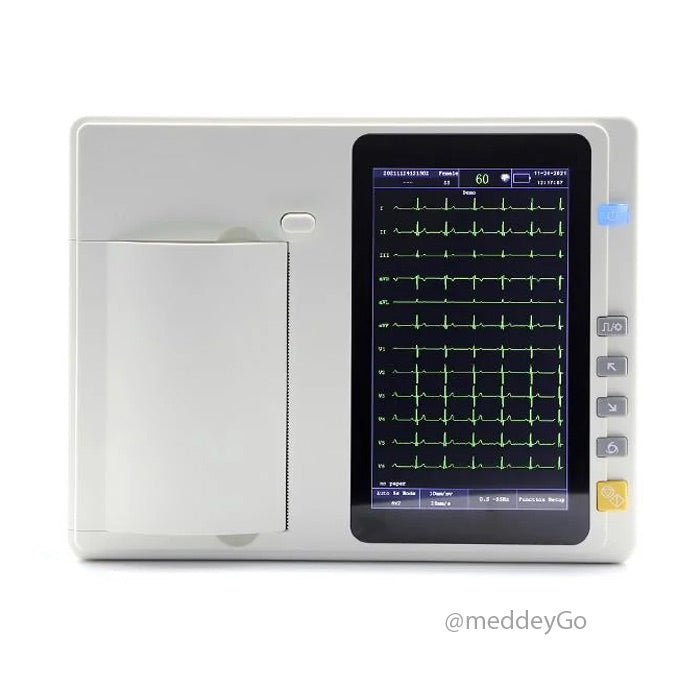

6 Channel ECG Machine with High Quality Waveforms

6-Channel ECG Machine with High-Quality Waveforms

The 6-Channel ECG Machine is designed for accurate cardiac monitoring and professional ECG reporting in hospitals, clinics, diagnostic centers, and healthcare facilities. With a 7-inch TFT touchscreen, advanced signal processing, automatic measurement, thermal printing, and large ECG record storage, it supports fast and reliable cardiac assessment.

Product Overview

This ECG machine provides clear ECG waveform display and detailed analysis reports for efficient cardiac diagnostics. It supports patient information management, automatic ECG measurement and interpretation, USB and LAN connectivity, built-in memory, and a rechargeable lithium battery for convenient clinical use.

Key Features

• 6-Channel ECG Recording: Provides detailed ECG data for comprehensive heart monitoring and cardiac analysis.
• 7-Inch TFT Touchscreen: LED backlight display offers bright visuals and easy navigation during operation.
• Advanced Signal Processing: Digital isolation technology and signal processing support precise ECG readings.
• Patient Information Management: Allows storage of patient details such as name, age, and ID for organized record keeping.
• Automatic Measurement & Analysis: Automatically measures, analyzes, and interprets ECG results to simplify diagnostics.
• Detailed Analysis Report: Generates in-depth ECG reports for easier review and interpretation.
• Thermal Printing System: Wide thermal printer provides fast and clear ECG report printing.
• Customizable Paper Speeds: Supports recording speeds such as 25mm/s and 50mm/s for flexible ECG printing.
• Large Data Storage: Built-in memory and mini SD card support storage of more than 1000 ECG records.
• USB & LAN Connectivity: Enables easy ECG data transfer and integration with compatible systems.
• Rechargeable Lithium Battery: Built-in battery supports cordless operation for added mobility.
• Compact Design: Easy to move, handle, and use in different medical settings.

Technical Specifications

Type of Product	6-Channel ECG Machine
Display	7-Inch TFT Touchscreen with LED Backlight
Recording System	Thermal Printing System
Paper Speed	25mm/s, 50mm/s and Other Customizable Speeds
Sensitivity Options	5, 10, 20, 40 mm/mV
Data Storage	More Than 1000 ECG Records
Memory Support	Built-In Memory / Mini SD Card
Patient Information	Name, Age, ID and Other Patient Details
Connectivity	USB and LAN Socket
Battery	Built-In Rechargeable Lithium Battery
Analysis Function	Auto Measurement, Auto Analysis and Interpretation

Applications

• Hospitals
• Cardiology departments
• Diagnostic centers
• Clinics
• Emergency care units
• Routine ECG screening setups

Quick Usage & Care Tips

• Keep the ECG machine clean and dry for better long-term performance.
• Store the machine in a dust-free environment when not in use.
• Charge the rechargeable battery fully before first use.
• Use compatible thermal paper for clear ECG report printing.

Why Choose This ECG Machine?

This 6-channel ECG machine combines accurate ECG recording, touchscreen operation, automatic interpretation, patient data management, thermal printing, USB and LAN connectivity, and large storage capacity. It is a practical choice for healthcare professionals who need reliable ECG reporting with efficient workflow support.

Frequently Asked Questions

Q: Can this ECG machine be connected to a PC?

Yes, the ECG machine supports USB and LAN connectivity for ECG data transfer.

Q: How many ECG channels does this machine support?

This machine supports 6-channel ECG recording for detailed cardiac monitoring.

Q: How many ECG records can it store?

It can store more than 1000 ECG records using built-in memory or mini SD card support.

Q: Does the machine support automatic ECG analysis?

Yes, it supports automatic measurement, analysis, and interpretation of ECG results.

Q: Can this ECG machine print reports?

Yes, it includes a thermal printing system for clear and fast ECG report printing.
