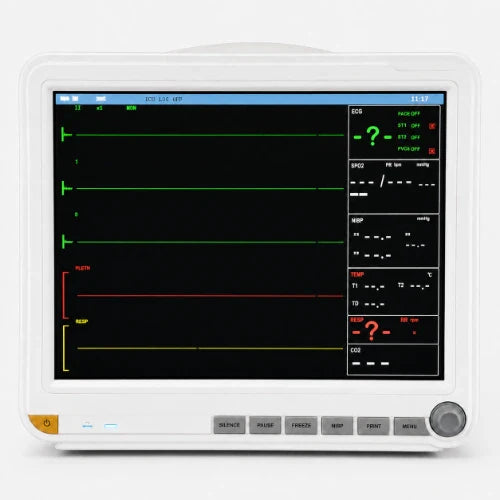

5 Para Monitor 15 Inch TFT Touch Screen for ICU & OT Use Pro
The 5 Para Monitor 15 Inch TFT Touch Screen is a professional bedside patient monitor designed for continuous monitoring of essential patient parameters in hospitals, ICUs, emergency rooms, operation theatres, recovery areas, wards, nursing stations and diagnostic healthcare environments. It helps healthcare professionals observe patient status clearly during routine and critical care workflows.
This 5 para monitor supports ECG, RESP, SpO2, PR, NIBP and TEMP monitoring. In addition, its 15 inch TFT touch screen, 8-channel waveform display, multiple working modes, alarm functions, data storage and wired or wireless central monitoring support make it useful for modern clinical departments.
Key Features
- Professional 5 para monitor for ICU, OT, ward and emergency monitoring.
- 15 inch TFT touch screen with 1024 x 768 high resolution display.
- Supports ECG, RESP, SpO2, PR, NIBP and TEMP monitoring.
- Displays up to 8 waveforms on one screen for real-time review.
- Includes Monitoring, Surgery and Diagnosis working modes.
- Multiple display modes include standard, large font, ECG full display, OXY, trend table and BP trend.
- Voice, light and character string alarm support with 3-level adjustable voice.
- Wired and wireless support for central monitoring system, depending on configuration.
- VGA output supports external display connection where required.
- AC power and lithium battery support with up to 200 minutes backup.
Technical Specifications
| Product Type | Bedside Patient Monitor / 5 Para Monitor |
|---|---|
| Display | 15 Inch TFT Touch Screen |
| Screen Resolution | 1024 x 768 High Resolution |
| Waveform Display | 8-Channel Waveform Display |
| Standard Parameters | ECG, RESP, SpO2, PR, NIBP, TEMP |
| Working Modes | Monitoring, Surgery, Diagnosis |
| Display Modes | Standard Interface, Large Font, ECG Standard Full Display, OXY, Trend Table and BP Trend |
| Alarm Support | Voice, Light and Character String Alarm with 3-Level Adjustable Voice |
| Information Storage | High Capacity Storage as per Selected Configuration |
| Connectivity | Wired and Wireless Support for Central Monitoring System, Depending on Configuration |
| External Display Output | VGA Output for External Display |
| Power | AC Power, Lithium Battery |
| Battery Backup | Approx. 200 Minutes / Up to 3 Hours Continuous Use |
| Optional Features | IBP, Touch Screen, Wi-Fi Module, Recorder, Central Monitoring System |
| Warranty | 1 Year |
ECG Technical Details
| Lead Mode | 5 Leads: I, II, III, AVR, AVL, AVF, V |
|---|---|
| Gain | 2.5 mm/mV, 5.0 mm/mV, 10 mm/mV, 20 mm/mV |
| Heart Rate Range | 15-300 BPM Adult; 15-350 BPM Neonatal |
| ECG Resolution | 1 BPM |
| ECG Accuracy | ±1% |
| Sensitivity | >200 uV Peak to Peak |
| ST Measurement Range | -2.0 to +2.0 mV |
| Sweep Speed | 12.5 mm/s, 25 mm/s, 50 mm/s |
| Bandwidth | Diagnostic: 0.05-130 Hz; Monitor: 0.5-40 Hz; Surgery: 1-20 Hz |
SpO2 Technical Details
| SpO2 Measuring Range | 0-100% |
|---|---|
| SpO2 Resolution | 1% |
| SpO2 Accuracy | 70-100% ±2% |
| Pulse Rate Range | 20-250 BPM |
| Pulse Rate Resolution | 1 BPM |
| Pulse Rate Accuracy | ±3 BPM |
Benefits of 5 Para Monitor
This 5 para monitor supports bedside monitoring of multiple patient parameters from one professional device. As a result, healthcare teams can review waveforms, numeric values, alarms and trends clearly during routine and critical patient care.
- Supports ECG, respiration, SpO2, pulse rate, NIBP and temperature monitoring.
- Large TFT display helps staff view values, waveforms and trends clearly.
- Multiple working modes support ICU, OT, ward, surgery and diagnostic areas.
- 8-channel waveform display supports real-time review of multiple signals.
- High capacity information storage supports clinical review and documentation.
- Wired and wireless support can connect with central monitoring systems where compatible.
- Battery backup supports monitoring during movement or power transition.
- Optional IBP, recorder and central monitoring support allow configuration flexibility.
Who Should Buy This?
The 5 Para Monitor 15 Inch TFT Touch Screen is suitable for healthcare facilities that need a large-display bedside patient monitor with essential parameter monitoring and flexible display options. Moreover, it is useful where ICU, OT, ward and diagnosis workflows need clear real-time monitoring support.
- Hospitals and ICUs for continuous bedside patient monitoring.
- Emergency rooms for quick observation of critical parameters.
- Operation theatres for surgery mode and real-time monitoring workflow.
- Recovery rooms for post-procedure monitoring support.
- Patient wards for routine vital and waveform monitoring.
- Nursing stations for patient observation and monitoring review.
- Diagnostic departments for clinical monitoring and documentation support.
Common Applications
- ECG monitoring
- Respiration monitoring
- SpO2 oxygen saturation monitoring
- Pulse rate monitoring
- NIBP blood pressure monitoring
- Temperature monitoring
- ICU, OT and emergency monitoring
- Bedside patient monitoring and clinical review
How to Use Safely
- Place the monitor securely on a bedside table, trolley, wall mount or clinical workstation.
- Connect the AC power supply or ensure the lithium battery is sufficiently charged.
- Attach ECG leads, SpO2 sensor, NIBP cuff, temperature probe and other required accessories.
- Select the correct patient type and working mode such as Monitoring, Surgery or Diagnosis.
- Check waveform display, numeric parameters, alarms, trends and display mode.
- Set alarm limits and voice level according to clinical requirement and facility protocol.
- Use wired or wireless central monitoring only where compatible infrastructure is available.
- Clean sensors, cables, cuff, probes and monitor surface after use as per infection-control guidelines.
Why Choose This 5 Para Monitor?
This 5 para monitor is designed for healthcare facilities that need a large-display patient monitor with essential parameter monitoring, waveform display, storage support, alarm functions and optional connectivity features. In addition, its multi-mode design supports clinical workflow across monitoring, surgery and diagnosis environments.
- 15 inch TFT touch screen supports clear bedside viewing.
- Standard ECG, RESP, SpO2, PR, NIBP and TEMP monitoring support.
- 8-channel waveform display helps review multiple signals together.
- Central monitoring, recorder, Wi-Fi and IBP options support future flexibility.
- Good choice for ICU, OT, emergency, ward and diagnostic monitoring needs.
FAQs
What parameters does this 5 para monitor measure?
This 5 para monitor supports ECG, respiration, SpO2, pulse rate, non-invasive blood pressure and temperature monitoring.
What is the display size of this monitor?
This monitor has a 15 inch TFT touch screen with 1024 x 768 high resolution display.
Does this monitor support central monitoring?
Yes, the supplied details mention wired and wireless support for central monitoring systems, depending on selected configuration and compatible infrastructure.
What working modes are available?
The monitor supports Monitoring, Surgery and Diagnosis modes for different hospital and clinical workflow requirements.
What is the battery backup of this monitor?
The device supports AC power and lithium battery operation with approximately 200 minutes or up to 3 hours of continuous use as per supplied details.
Who should operate this 5 para monitor?
This monitor should be operated by trained healthcare professionals. Readings, alarms, waveforms and trend data should be interpreted with patient condition and clinical protocol.
