3 Channel ECG Machine 7 Inch Touch 12 Lead Support
In stock
Share this product

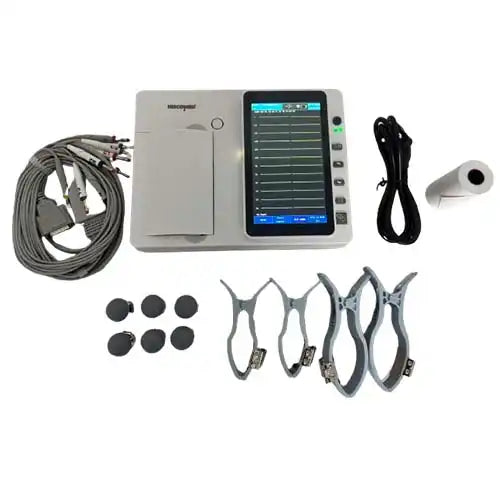

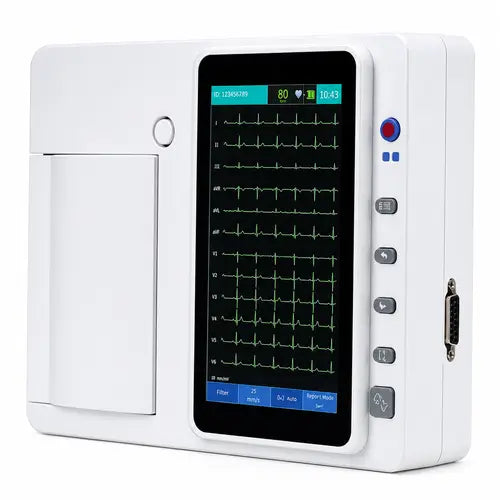

3 Channel ECG Machine with 7 Inch Touch Display & 12 Lead Support
The 3 Channel ECG Machine with 12 Lead Support from Medansh is designed for hospitals, clinics, diagnostic centres, OPD rooms and emergency care areas where reliable ECG testing and cardiac assessment support are required.
This electrocardiogram machine supports standard 12 lead ECG acquisition, helping healthcare professionals record cardiac electrical activity during routine screening, patient evaluation and clinical monitoring. It is suitable for ECG testing workflows where clear recording, flexible report settings and thermal printing are important.
With simultaneous 12 lead acquisition, multiple recording modes, selectable rhythm lead, thermal printing and built-in battery support, this ECG machine is useful for OPD testing, bedside ECG recording, health check-ups, diagnostic centres and emergency cardiac evaluation.

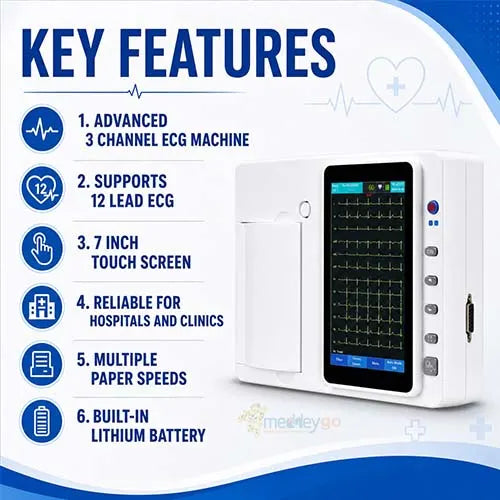

Key Features
Standard 12 Lead ECGSupports standard 12 lead ECG recording for complete cardiac signal assessment. |
Simultaneous 12 Lead AcquisitionCaptures 12 lead data together to support faster and more consistent ECG workflow. |
Thermal Printing SystemPrints ECG reports on 80 mm roll paper for quick clinical documentation and patient records. |
Multiple Paper SpeedsSupports 12.5 mm/s, 25 mm/s and 50 mm/s paper speeds for flexible ECG reporting. |
Built-in Battery SupportRechargeable lithium battery support helps maintain operation during movement, bedside use or power changes. |
Clinical Safety SupportIncludes protection against defibrillator effect and low patient leak current support for safer clinical operation. |

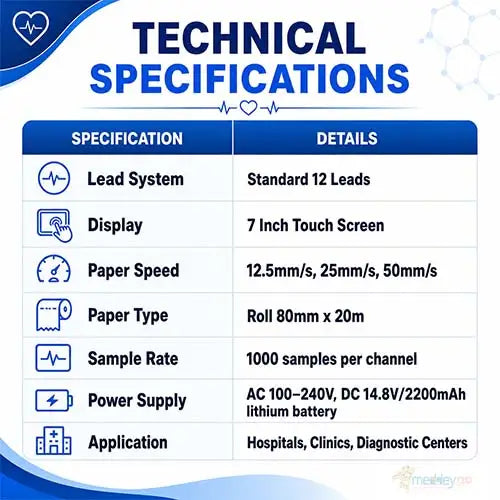

Technical Specifications
| Specification | Details |
|---|---|
| Lead | Standard 12 Leads |
| Acquisition Mode | Simultaneous 12 Leads Acquisition |
| Measurement Range | ±5mVpp |
| Input Circuit | Floating; protection circuit against defibrillator effect |
| Input Impedance | ≥50MΩ |
| Input Circuit Current | <0.05μA |
| CMRR | >100dB |
| Patient Leak Current | <10μA at 220V–240V |
| Frequency Response | 0.05Hz–150Hz (-3dB) |
| Sensitivity | 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV; error ±5% |
| Anti-Baseline Drift | Automatic |
| Time Constant | ≥3.2s |
| Noise Level | <15μV p-p |
| Paper Speed | 12.5mm/s, 25mm/s, 50mm/s |
| Recording Mode | Thermal Printing System |
| Paper Specification | Roll 80mm x 20m |
| Automatic Record Mode | 3CHx4+1R, 3CHx4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CHx2 |
| Manual Mode | 3CH, 2CH, 3CH+1R, 2CH+1R |
| Rhythm | Any lead selectable |
| Filter | EMG: 25Hz / 30Hz / 40Hz / 75Hz / 100Hz / 150Hz; DFT: 0.05Hz / 0.15Hz; AC: 50Hz / 60Hz |
| Safety Standard | IEC I / CF |
| Sample Rate | Normal: 1000sps/channel |
| Power Supply | AC: 100–240V, 50/60Hz, 30VA–100VA; DC: 14.8V/2200mAh built-in lithium battery |
| Single Gross Weight | 2.8 kg |

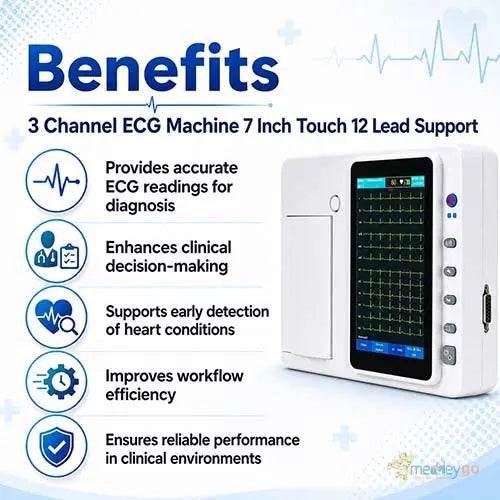

Product Benefits
- Supports ECG recording for routine cardiac assessment and clinical evaluation.
- Standard 12 lead ECG acquisition helps provide a complete cardiac signal view.
- Thermal printing supports quick ECG report generation for clinical records.
- Built-in battery support helps during bedside testing, movement or power changes.
- Multiple paper speeds and sensitivity settings support flexible ECG testing needs.
- Selectable rhythm lead helps clinical teams record ECG data as per requirement.
- Suitable for hospitals, clinics, diagnostic centres, OPDs and emergency units.
Common Uses
|
Hospital ECG Testing Useful for cardiac assessment in wards, OPDs, emergency care areas and cardiology departments. |
Clinic Screening Suitable for routine heart rhythm screening in clinics, consultation rooms and health check-up areas. |
|
Diagnostic Centres Supports ECG report printing and structured patient testing workflows for diagnostic facilities. |
12 Lead ECG Recording Helps trained staff perform standard ECG recording with proper leads and placement protocol. |
Who Should Buy This Product?
- Hospitals and emergency departments
- Clinics and OPD consultation rooms
- Diagnostic centres and cardiac screening setups
- Doctors, cardiology units and healthcare professionals
- Medical buyers looking for a standard 12 lead ECG machine
- Healthcare facilities needing a reliable electrocardiogram machine for routine use
Why Choose This Electrocardiogram Machine from Medansh?
This 3 Channel ECG Machine with 12 Lead Support is a practical choice for healthcare spaces that need standard ECG acquisition, report printing and flexible recording settings. It supports clinical ECG workflows while keeping operation convenient for trained users.
With simultaneous 12 lead acquisition, thermal printing, selectable rhythm lead, multiple sensitivity settings and built-in battery support, this ECG machine is suitable for clinics, hospitals, diagnostic centres and emergency care setups. With Medansh, healthcare buyers can source dependable diagnostic and medical equipment for professional use.
Quick Tips for Use
- Place ECG electrodes correctly as per standard ECG leads and placement protocol.
- Keep the patient relaxed and still during recording for cleaner waveforms.
- Select paper speed and sensitivity according to clinical reporting need.
- Use filters carefully to reduce interference without affecting interpretation.
- Check paper roll, battery charge and lead cables before ECG testing.
- ECG interpretation should always be done by qualified healthcare professionals.
Buying Guidance
Choose this electrocardiogram machine if your clinic, hospital or diagnostic centre needs standard 12 lead ECG support, thermal printing, selectable rhythm lead, multiple paper speeds and battery backup.
Before purchasing, check your ECG testing workflow, patient volume, reporting requirement, paper roll availability, staff training and service support. This machine should be operated by trained healthcare staff, and ECG results should be reviewed by qualified medical professionals.
Buy Electrocardiogram Machine Online from Medansh
Upgrade your diagnostic setup with an ECG machine designed for standard 12 lead ECG testing, report printing and professional clinical use. Explore more diagnostic and medical equipment for hospitals, clinics and diagnostic centres at Medansh.
Frequently Asked Questions
What is an electrocardiogram machine used for?
An electrocardiogram machine is used to record the electrical activity of the heart for clinical assessment and cardiac evaluation.
Does this ECG machine support 12 lead ECG?
Yes, this ECG machine supports standard 12 lead ECG acquisition for complete cardiac signal recording.
What is the use of ECG leads and placement?
Proper ECG leads and placement help capture heart signals from different body positions for accurate ECG recording.
Can this ECG machine print reports?
Yes, it supports thermal printing with 80mm x 20m roll paper.
Is this ECG machine suitable for clinics?
Yes, it is suitable for clinics, hospitals, diagnostic centres, OPDs and emergency care units.
Does this machine have battery backup?
Yes, it supports DC 14.8V/2200mAh built-in lithium battery operation.
Who should operate this ECG machine?
This ECG machine should be operated by trained healthcare staff, ECG technicians or qualified medical professionals.
Can ECG results be self-interpreted?
No, ECG findings should be interpreted by qualified doctors or cardiology professionals.
