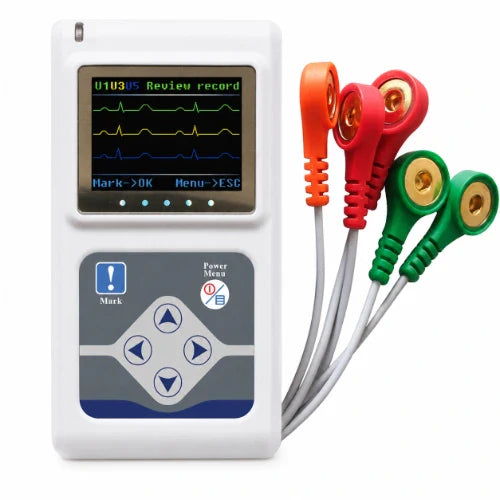

24 Hour ECG Holter Monitor 3 Channel Recorder
In stock
Share this product
24 Hour ECG Holter Monitor 3 Channel Recorder
The 24 Hour ECG Holter Monitor 3 Channel Recorder is a compact ambulatory ECG monitoring device designed for extended cardiac rhythm recording over a 24-hour period. It is suitable for hospitals, cardiology clinics, diagnostic centres, cardiac care units, physician clinics and healthcare facilities where long-duration ECG monitoring is required.
This 24 hour ECG holter records cardiac electrical activity while the patient continues normal daily movement under clinical guidance. In addition, its 3 channel recording, USB 2.0 interface, 12-bit sampling accuracy and 2 AA battery operation make it practical for professional cardiac monitoring and ECG review workflow.
Key Features
- 3 channel Holter monitor for ambulatory ECG recording.
- Supports continuous ECG recording for up to 24 hours.
- Compact and portable design for wearable patient monitoring.
- USB 2.0 interface supports data transfer to compatible systems.
- 12-bit sampling accuracy supports digital ECG signal recording.
- Standard sensitivity of 10 mm/mV ±5% as per supplied details.
- Works with 2 AA size batteries for portable operation.
- Type B internally powered safety type as per technical specification.
- Suitable for cardiology clinics, hospitals and diagnostic centres.
- Useful for extended ECG review under trained medical supervision.
Technical Specifications
| Product Type | Holter Monitor / Ambulatory ECG Monitor |
|---|---|
| Number of Channels | 3 Channels |
| Record Time | 24 Hours |
| Interface | USB 2.0 |
| Standard Sensitivity | 10 mm/mV ±5% |
| CMRR | 60 dB |
| Low Frequency Characteristics | Time Constant 3.2 s |
| Scan Speed | 25 mm/s ±5% |
| Enduring Polarization Voltage | 300 mV DC Polarization Sensitivity Shift ±10% |
| Least Measure Signal | 50 µV p-p |
| Product Safety Type | Type B, Internally Powered |
| Sampling Accuracy | 12 Bit |
| Power | 2 AA Size Batteries |
| Scale Voltage | 1 mV ±5% |
| Noise Level | 30 µV |
Benefits of 24 Hour ECG Holter
This 24 hour ECG holter supports extended ECG monitoring beyond a short resting ECG test. As a result, clinicians can review cardiac rhythm activity over a longer recording period and assess ECG patterns during regular patient activity.
- Supports 24-hour ambulatory ECG recording workflow.
- Helps clinicians review heart rhythm activity over an extended period.
- Compact wearable design supports monitoring during routine patient movement.
- USB 2.0 interface supports ECG data transfer and review.
- 3 channel recording supports professional rhythm documentation.
- Battery-powered operation helps maintain portability during monitoring.
- Suitable for cardiology clinics, hospitals and diagnostic centres.
- Useful for follow-up ECG monitoring under trained healthcare supervision.
Who Should Buy This?
The Holter Monitor 3 Channel for 24 Hours ECG Monitoring is suitable for healthcare facilities that need a portable ambulatory ECG recorder for extended cardiac rhythm review. Moreover, it is useful where 24-hour monitoring, USB data transfer and compact patient-wearable design are required.
- Cardiology clinics for ambulatory ECG monitoring workflow.
- Hospitals for extended cardiac rhythm recording support.
- Diagnostic centres for 24-hour ECG Holter test services.
- Cardiac care units for follow-up rhythm monitoring support.
- Physician clinics for extended ECG assessment workflow.
- Outpatient departments for ambulatory patient monitoring services.
- Healthcare buyers looking for a compact 3 channel Holter monitor.
Common Applications
- 24-hour ambulatory ECG monitoring
- Cardiac rhythm review
- Extended ECG recording workflow
- Follow-up cardiac monitoring
- Diagnostic centre Holter test setup
- Outpatient ECG recording
- Cardiology clinic monitoring workflow
- ECG data transfer and record review
How to Use Safely
- Prepare the patient as per ECG monitoring protocol.
- Ensure the skin is clean and dry before electrode placement.
- Attach ECG electrodes at the recommended positions.
- Connect the ECG cable securely to the Holter recorder.
- Confirm that the recorder is powered using 2 AA batteries.
- Start the recording session and verify proper ECG data capture.
- Advise the patient not to remove electrodes or tamper with the device.
- After 24 hours, remove the device and transfer data using USB 2.0.
Why Choose This Holter Monitor?
This Holter monitor is designed for healthcare facilities that need a compact, battery-powered ambulatory ECG recorder for 24-hour rhythm monitoring. In addition, its 3 channel recording, USB 2.0 interface and professional ECG specifications support routine cardiology and diagnostic workflows.
- Compact 3 channel Holter monitor for professional ECG recording.
- 24-hour record time supports extended cardiac rhythm review.
- USB 2.0 interface supports practical data transfer.
- 2 AA battery operation supports portable monitoring use.
- Good choice for cardiology clinics, hospitals and diagnostic centres.
FAQs
What is a 24 hour ECG Holter used for?
A 24 hour ECG Holter is used for ambulatory ECG recording over a full day while the patient continues routine activity under clinical guidance.
How many channels does this Holter monitor support?
This Holter monitor supports 3 channel ECG recording for extended cardiac rhythm review and documentation.
How long can this Holter monitor record ECG data?
The record time is 24 hours. After recording, ECG data can be transferred through the USB 2.0 interface for review.
What power source does this device use?
This Holter monitor operates using 2 AA size batteries for portable ambulatory ECG recording.
Can patients move during Holter monitoring?
Yes, patients can usually continue routine daily activity unless advised otherwise by the healthcare professional. Electrodes and recorder should remain properly attached.
Who should interpret Holter ECG data?
Holter ECG data should be reviewed and interpreted by qualified clinicians or cardiology professionals using compatible analysis software and patient clinical information.
