12 Channel ECG Machine with High Quality Waveforms

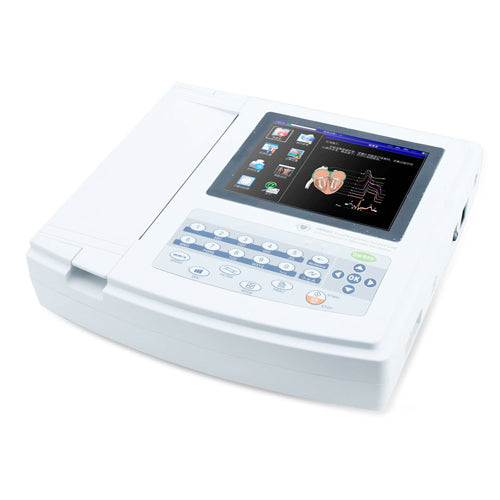

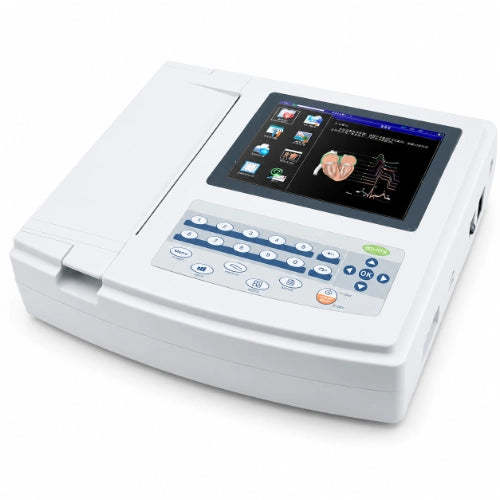

🩺 12-Lead ECG Machine – Advanced Digital ECG System

This high-performance 12-lead ECG machine is designed for accurate cardiac monitoring with automatic analysis and interpretation. Featuring a 7-inch high-resolution touchscreen and a full alphanumeric keyboard, it ensures efficient operation for healthcare professionals.

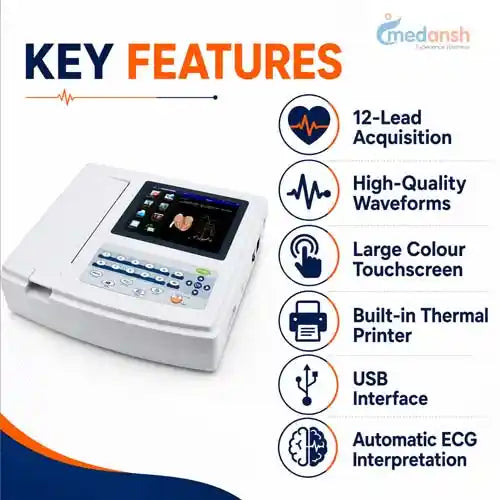

🔹 Key Features

✅ 📺 7-Inch High-Resolution Touchscreen – Clear display for real-time ECG readings
✅ ⌨️ Full Alphanumeric Keyboard – Quick access to functions with shortcut keys
✅ 🔄 Simultaneous 12-Lead ECG Acquisition & Display – Ensures accurate heart monitoring
✅ 📊 Automatic ECG Measurements & Interpretation – Reduces workload for doctors
✅ 💾 Internal Storage – Stores up to 1000 cases for convenient case review
✅ 🔋 Built-in Rechargeable Lithium Battery – High capacity for continuous operation
✅ 🔗 USB Connectivity – Transfers ECG data to a PC for review & analysis
✅ 🖨️ Multiple Printing Modes – Auto and manual modes with adjustable paper speed

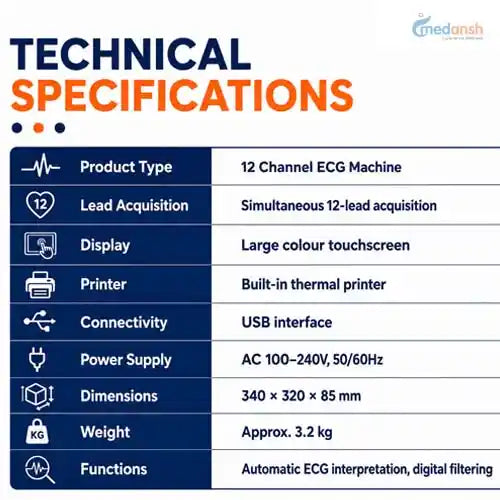

📏 Technical Specifications

🔹 Input Way: Floating Defibrillation Protection
🔹 Leads: Standard 12 Leads
🔹 Patient Leak Current: <10 µA
🔹 Input Impedance: ≥50 MΩ
🔹 Frequency Response: 0.0 Hz~150 Hz (-3dB)
🔹 CMRR: >60dB, >100dB (with filter)
🔹 EMG Interference Filter: 35 Hz (-3dB)
🔹 Recording System: High-Speed Thermal Printing
🔹 Recording Paper Size: 210 mm(W) x 20 mm(L)
🔹 Paper Speed:

• Auto Record: 25mm/s, 50mm/s (±5%)
• Rhythm Record: 25mm/s, 50mm/s (±5%)
• Manual Record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s (±5%)
  🔹 Sensitivity Selection: 5, 10, 20, 40 mm/mV (±5%) – Standard: 10 mm/mV
  🔹 Measurement Parameters: HR, P-R interval, QRS duration, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), etc.
  🔹 Product Safety Type: Class 1 CF applied part with defibrillation & protection circuit
  🔹 Enduring Polarization Voltage: ±5500mV
  🔹 Noise Level: <15 µVp-p
  🔹 Size: 334 mm (L) × 320 mm (W) × 85 mm (H)
  🔹 Power Supply:
• AC: 100-240V, 50/60 Hz
• DC: 14.8V, 3700mAh Rechargeable Lithium Battery

📜 Printing & Display Features

🖨️ Display of 3/6/12-Lead ECG – Shows print mode, sensitivity, paper speed, and filter state on one screen for better comparison
🖨️ Multiple Printing Modes: Auto, Rhythm, and Manual with options like 12x1, 6x2+1, 3x4+1, rhythm 12, rhythm 10, rhythm 8, rhythm 6, etc.
🖨️ Adjustable Waveform Print Length & Time Print Function – Meets different diagnostic needs

💡 Frequently Asked Questions (FAQs)

How long does the battery last?
💬 In optimal DC state, the ECG machine can provide 10-hour standby time and continuous printing for over 3 hours.

Can the ECG data be transferred to a computer?
💬 Yes! The device supports USB connectivity for data transfer & analysis on PC using ECG playback software.

What printing options are available?
💬 The ECG machine offers multiple printing formats & speeds, including auto, rhythm, and manual modes.

Is the machine suitable for home visits?
💬 Yes! It is portable and battery-operated, making it ideal for home healthcare and mobile diagnostics.

🏭 Manufacturer Details

📍 Country of Origin: 🇮🇳 India
🏢 Manufacturer/Importer/Marketed By:
Meddey Technologies Pvt. Ltd.
📍 Address: C-75, First Floor, DDA Sheds, Industrial Area, Phase 1, Okhla, New Delhi - 110020
📞 Phone: +91 8586-012345

🛒 Ensure Precise ECG Readings & Advanced Diagnosis! Get the 12-Lead ECG Machine today for accurate, reliable, and efficient cardiac monitoring! 🚀
